Zxtech 4K CCTV System - 6 x IP PoE Cameras Audio Recording Face Detection Outdoor Sony Starvis | RX6A9Y
Pickup currently unavailable
New Smart AI 8MP 4K (optional 5MP & Optional Intense LED Colour Night Vision) CCTV Security System comes with 2.8mm wider angle. Slick surveillance system packed with Built-in Memory and Microphone. Next-generation 8MP 4K (optional 5MP) Sony Starvis Chip enables impressive HDR high dynamic range. Great night vision now comes with optional Intense LED colour Night vision option. Outdoor PoE 4K UHD IP CCTV Camera System for home or business. PoE one cable transmits data and power and makes it easier to install. Face Detection works with Intruder, Loiter, Line Crossing Alert. If you have recent reports for criminal activity in your neighbourhood, you can benefit from face detection and capture the faces of potential suspects while recording with 4K or 5MP.

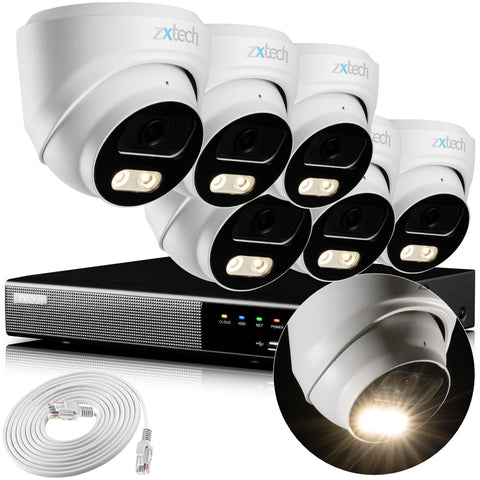

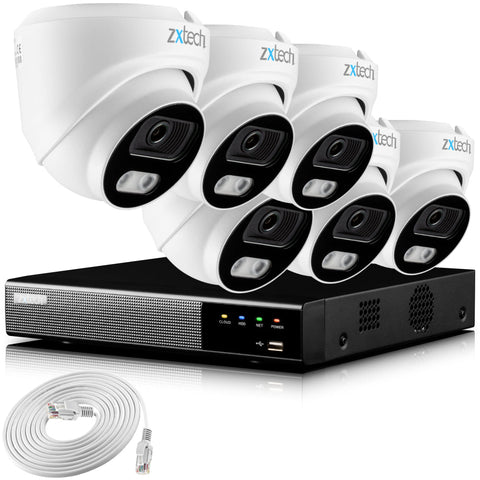

What's in the Box

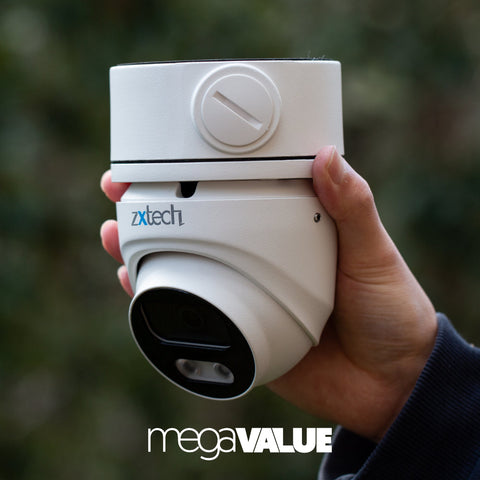

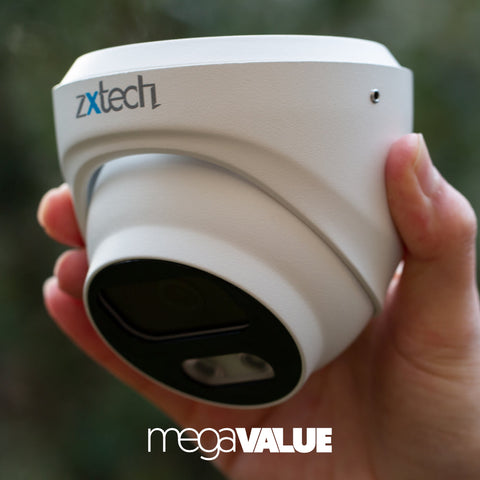

- 6 x Zxtech MegaValuem 4K AI CCTV Camera (Optional Intense LED Colour Night Vision Feature)
- 1 x 8CH Onyx 4K PoE Network Video Recorder
- 3 x 10M cable, 3 x 20M cable and 1 x 2M Cable

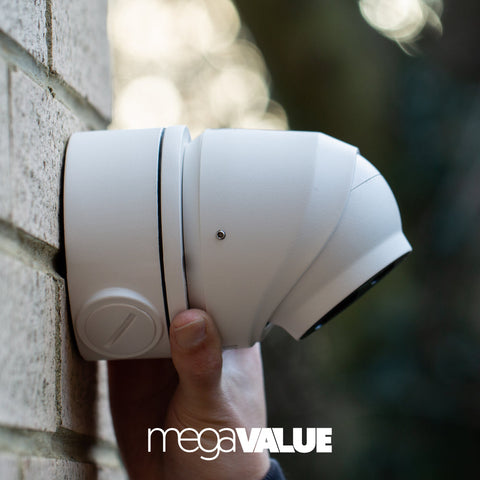

- Optional HDD & Optional Deep Base
- 【4K/UHD/8MP/5MP/4MP】Zxtech is proud to introduce new range 4K 8MP UHD (3840*2160) (optional 5MP) security system features ultra high- definition quality footage with 4K capable CCTV NVR
- 【30M Night Vision】Another level of visualization with superb night vision up to 30M. If you have some extra lighting, you will be able to achieve colour night vision. Alternatively, buy the "Intense LED" option for the built-in 2 x ultra bright light supplements and larger iris for full colour CCTV footage 24/7.
- 【Face and Body Detection】Ultra Smart AI Face Detection enables Intrusion, Line Crossing, Loiter and People Gather Detection
- 【Sony Chip】The cameras included have embedded Sony Starvis Sensor and will reduce blurred images caused by low- frequency vibration
- 【PoE】PoE built-in connection allows you to connect 4K (optional 5MP) CCTV Camera to the 4K NVR using one single cable. This cable provides power to the camera and transmits video
- 【Built-in Memory and Microphone】The cameras included in the package have a built-in microphone, reset button and supports built-in 4GB Storage with 512GB Extendable SD Card Slot

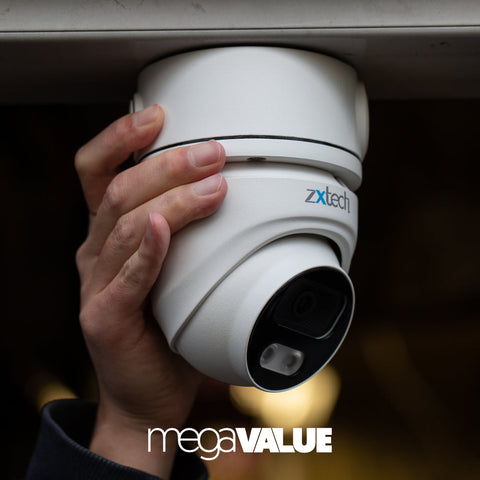

- 【2.8mm Wide Angle】MegaValue cameras have 2.8 mm fixed lens wide-angle viewing so you can see the whole picture
- 【H265+】The system itself supports H265+ video compression and you can save up to 50% more data on your hard disk storage
- 【Smart Phone Remote Access】4K (optional 5MP) CCTV System that is designed to be in use with a free mobile app, makes it a great solution for any home

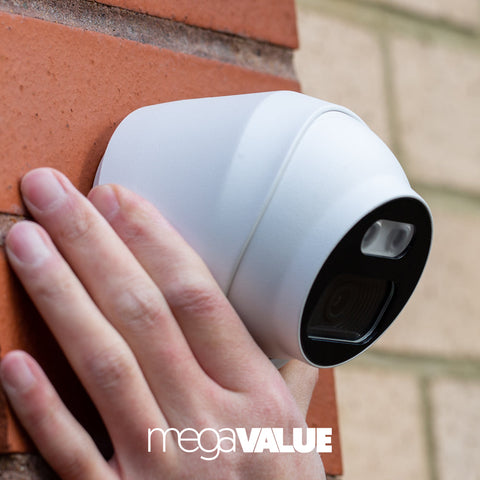

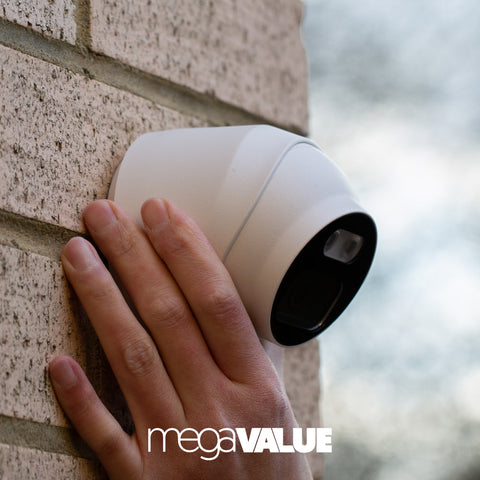

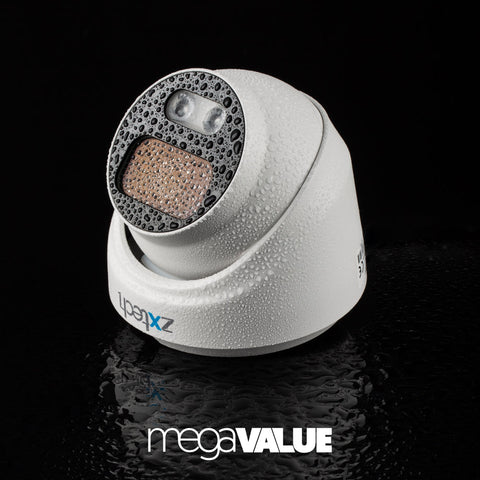

- 【Waterproof & Vandal Proof】Ultra HD surveillance kit comes with heavy-duty metal casing, rated to IP67 suitable for indoor and outdoor
- 【HDR & Image Enhancement】Featuring IR Cut, WDR, BLC, ROI, Defog functions this system produce accurate colour images and transmit IR light passing the visible light. HDR Sensor Enables Dynamic Range over Mind-blowing 120 dB
- 【Smart Motion Alert】4K (optional 5MP) kit that supports motion detection and mobile notification alerts every time when motion is triggered
- 【Quick Mobile Setup】P2P QR Scan for anyway, anytime Remote CCTV Access
- 【Built-in 4CH PoE Switch】CCTV NVR with 4CH built-in PoE switch included

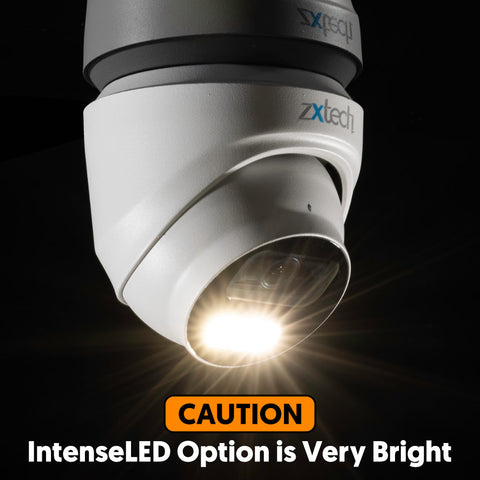

Optional Intense LED Colour Night Vision Technology
The New Zxtech Colour4K technology provides full-colour CCTV footage throughout day and night in stunning 4K Ultra HD resolution. The new range is able to achieve this with a larger aperture, intense bright white enhancement LED lighting and top of the range Sony Starvis Sensor. This camera range features Built-in 4000K daylight colour LED bulbs. This intense LED lights up your property just like a floodlight. The Zxtech AI Colour Night Vision camera no longer requires infrared to capture footage during the night. With a larger iris. The video recording now provides excellent colour footage 24/7, a vast improvement on traditional black and white footage. If the incident happens during the night, the colour night vision footage is instrumental to aid police investigation, while black and white night vision footages are not as effective when presented in court. Already a deterrent in its presents, those built-in LEDs are very bright and stay on during the night. So can be unsuitable for indoor and residential areas where the intense LED can be intrusive to surrounding premises within close proximities.
Modern Compact Design
Experience cutting edge 4K Ultra HD resolution with innovative UHD system. Highest level of design available on the market. A modern and compact unit that allows live view and recording. The recorder supports up to 16 CCTV IP Cameras, which gives you an option to extend your system in the future. PoE CCTV Camera System that worths the investment. The kit offers real 4K IP quality because of the integrated 8MP Sony Starvis Chip inside.
4K 8MP UHD Sony Starvis Sensor Wide Angle
See everything day or night you will be able to see everything, long-range night vision with up to 98 feet with powerful infrared LEDs. This camera will automatically switch to White Light LED night vision and record colour even there is no street light at all. You can see more and protect more with wider angle viewing. Thanks to especially embedded Sony Starvis Chip inside every 4K camera. This camera has a wide-angle 2.8 mm lens and it is super flexible. You can point to any direction when you fix it on the wall or ceiling, no matter vertically or horizontally.
Mind Blowing Clarity
If you looking for the latest this may be perfect choice. Upgrading to 4K offers noticeable results in image quality. Home security kit which is begging to move away from traditional 1080p Full HD and rolling out ultra-crisp, ultra-clear and sharp quality image with 4K resolution. This sensor comes with exceptional sensitivity and low-light performance enhanced by built-in 4000K White LED. Equipped with Sony Starvis 8MP Sensor the camera produces more than 8 million pixels. Achieving even higher performance with lower power consumption.
PoE IP CCTV System, get an All-in-One Security Camera Kit
Power over Ethernet a.k.a PoE. This is an innovative technology that lets network cable carry electrical power. As a digital CCTV camera normally requires a BNC cable for video and a power adaptor to power it, the cameras in this system require only one network cable to provide video and power. With this system, you will not need any power splitter or power supply for cameras and by this, the installation is very simple and time-saving. You can have a really clean and cost-effective installation without any extra cabling.
Much less bandwidth, much higher performance
Say hello to H.265+ High- Efficiency Video Coding. Lower the cost of hard drive storage and transmission. This system becomes extremely efficient and the required space for video storage is decreasing by 40 to 50% and deliver low cost for home and business. This feature enables you to record up to 4 times longer than h.264 with the same hard drive size.
Up to 4x Sharper than 1080p
If you looking for the latest this may be perfect choice. Upgrading to 8MP 4K offers noticeable results in image quality. Home security kit which is begging to move away from traditional 1080p Full HD and rolling out ultra-crisp, ultra-clear and sharp quality image with 8MP 4K resolution. That system is a serious upgrade if you are looking to get top specs for your security. This system supports 8MP 4K (optional 5MP) Playback, also support audio with inbuilt microphone.
Wide Angle Viewing and SD Card Slot Embedded
No need for a varifocal camera to see the whole image this Zxtech camera will allow you to see super wide-angle with no hassle. Zxtech camera is using a dedicated lens for a super-wide angle of viewing. You can enable in-camera recording to backup your footages. Using an SD card helps you backup the footage and keep them offline for even better security.
Loop Recording on pre-installed SD Micro SD Card with up to 512GB storage and 4GB Built-in Memory
The camera in the kit has a built-in SD card slot and can record up to 512GB storage two times bigger storage than a standard CCTV camera. If you like to keep footages as a backup then this camera will be perfect for your needs. The camera support loop recording means it will overwrite. Primarily designed to store motion-activated videos.
SONY Starvis Chipset
Zxtech invested in high-quality cameras and considering that we have embedded high sensitive sensor working in low-light conditions making the cameras ideal for home or professional security. This sensor comes with exceptional sensitivity and low-light performance. Equipped with Sony Starvis 8MP Sensor the camera produces more than 8 million pixels. Achieving even higher performance with lower power consumption.
Increase your Access Capabilities using smartphone access
Remotely viewing your CCTV is an important part of any security system. So you can monitor your home or business from everywhere. With this feature, Zxtech offers reliability and protection. This system is a fantastic piece of security equipment, ideal for both commercial premises and domestic properties. This will automatically eliminate the need for an on-site guard. Other systems may be slow to react when an intruder break-in, Zxtech systems will allow you to remote monitoring your premises.
AI Face Recognition, Line Crossing, People Gather Detection, Loiter Detection, Intrusion Detection, Motion Detection, Schedule, Masking
The system combines Motion Detection, Scheduling and Masking in one. As usual, our Zxtech kits comes with standard functions such as Motion Detection, Email Alerts, Masking and Scheduling. The system detects motion if enabled and prevent crime. At the beginning of the year, Zxtech introduces new technology, power AI functions to offer an entirely new level of CCTV. Our systems can now save faces and compare them with high accuracy.
Zxtech your best UK supplier has launched a new generation of firmware for CCTV NVR. The new firmware brings a user-friendly interface, full of new features. Based on great user experience and enhanced intelligent functions the next-gen interface will allow customers to do a lot more. This firmware is a massive improvement with new features such as Face Recognition, Intrusion Detection, Line Crossing, Loiter Detection and People Gather Detection etc. Smart AI system with real-time monitoring on HDD, providing you safety and reliability. Zxtech launch new firmware, new software recorders, a real joy to use.
|Image Sensor||1/2.8"" SONY Starvis Back-illuminated CMOS sensor|
|Resolution||5MP (optional 8MP)|
|Effective Pixels||2616 (H) x 1964 (V) (optional 3864(H)*2192(V))|
|Electronic Shutter Time||Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec|
|Pixels||8MP (optional 5MP)|
|Infrared LED||42µ x 2PCS|
|Optiional Intense LED||3015U × 2 Warm light LED up to 30M|
|IR Status||Auto Control|
|IR Power On||Auto Control|
|ONVIF||Support ONVIF 2.4(Profile S/T)|
|P2P||Yes, Support QR Code|
|PoE||Internal, Support IEEE 802.3af|
|Video Delay||0.3S (Within the Lan)|
|Main Stream 1||2592*1944@30fp (optional 2048*1536@30fps)
|Intelligent Analysis||Intrusion Detetion, Line Cross Detetion, Loiter Detetion, People Gather Detecion|
|Recognition||Face Detection and Recognition
Number of faces per frame: 32
Capture rate: >99.5%
Repeat capture rate: <15%
False capture rate: <0.5%
Number of supported faces: 30,000
Minimum detection of face pixels: 25*25
Maximum detection of face pixels: 300*300
|Day/Night||Color/ B&W (Select Intense LED for 24/7 Colour)|
|Image Config||Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance,
FLK(Flicker Control), Video Tampering
|Defog Mode, ROI, BLC||Support|
|Privacy Masking||3 Rectangular Zone|
|Alarm||1 Channel Input/Output|
|SD Card Slot||External, Support Max 512GB,With 4G Storage|
|Audio||1 Built-in MIC|
|Main Processor:||ARM Cortex A7 Processor|
|Operating System:||Embedded LINUX|
|Video Input:||16CH (4096x2160, 2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, etc)|
|Video Output:||1 VGA, 1 HD|
|Audio Output:||1 Port RCA(Linear)|
|Audio Compression standard:||G711u, G711a, ADPCM_DVI4|
|Alarm Sensor Input:||4|
|Motion Detection:||16 Channel, MD Zones: 396 (22 x 18)|
|Trigger Events:||Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, Alarm output|
|HD Output1:||Resolution: 4K (3840 x 2160)/30Hz, 4K (3840 x 2160)/30Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz|
|VGA Resolution:||1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz|
|Display Split:||16CHxD1/ 9CHxD1/ 8CHxD1/ 4CHxD1/ 1CHx1080P/ 1CHx3MP/ 1CHx4MP/ 1CHx5MP/ 1CHx4k|
|OSD Camera:||Title, Time, Recording, Motion Detection|
|Resolution:||4K(4096x2160), 5MP(2592x1944), 4MP(2688x1520/2560x1440), 3MP(2048x1536), 1080P(1920x1080), 960P(1280x960), 720P(1280x720), D1 (720x576/720x480)|
|Record Rate PAL:||PAL4k@10x25fp, 5MP@14x25fp, 4MP@16x25fp, 3MP@16x25fp, 1080P@16x25fp, 960P@16x25fp, 720P@16x25fp, D1@16x25fp
NTSC: 4k@10x30fp, 5MP@14x30fp, 4MP@16x30fp, 3MP@16x30fp, 1080P@16x30fp, 960P@16x30fp, 720P@16x30fp, D1@16x30fp
|Record Mode:||Manual/Timer/Motion Detection|
|Local Sync Playback:||1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps|
|Decode Capability:||1CH 4K(3840x2160)@30fps|
|Remote Sync Playback:||Yes|
|Search Mode:||ALL, Channel, Manual, Time, Date, Motion Detection|
|Playback Functions:||Play, Pause, Stop, Fast Play, Digital Zoom|
|Interface:||8 x RJ45 (10M/100M Adaptive Ethernet Interface) + 1 x RJ45 10M/100M/1000M Adaptive Ethernet Interface|
|POE:||8 x Independent 100Mbps POE Network Interfaces(Output PowerAT mode 30W, AF mode 15W per Interface), 45/78 line order, Total Power Output more than 100W, Support Plug and Play, Support network cable extended mode up to 250M|
|Interface Type:||1 SATA Interface|
|Capacity:||Up to 8TB capacity|
