Zxtech 5MP Wireless PTZ CCTV System - 2 x WiFi Security Camera 5X/10X Auto Zoom Colour Night Vision Outdoor 2-Way-Audio 9CH Sony Starvis
Pickup currently unavailable
- A Complete Wireless PTZ System
- Wireless 8dB Enhanced Connection
- Intense LED and Infrared Fusion Night Vision
- Optional 5X and 10X optical zoom
- Colour Footage 24/7 even During the Night
- Automatic PTZ with Preset Patrol Option
- 5 Megapixel Super HD
- 2-Way Audio with Built-in Mic and Speaker
- Smart face and Humanoid Detection
- Smart alert as well as trigger a loud alarm sound
- P2P QR Scan Mobile App Connection
- Access and control the camera anyway anytime once setup complete
- SD Card Slot with up to 128GB
- Waterproof IP67
- Vandal Proof
- Onvif 2.0+
- Sony Starvis Low Lux Sensor
- Optional up to 8TB HDD
- Optional 128GB onboard SD storage per camera

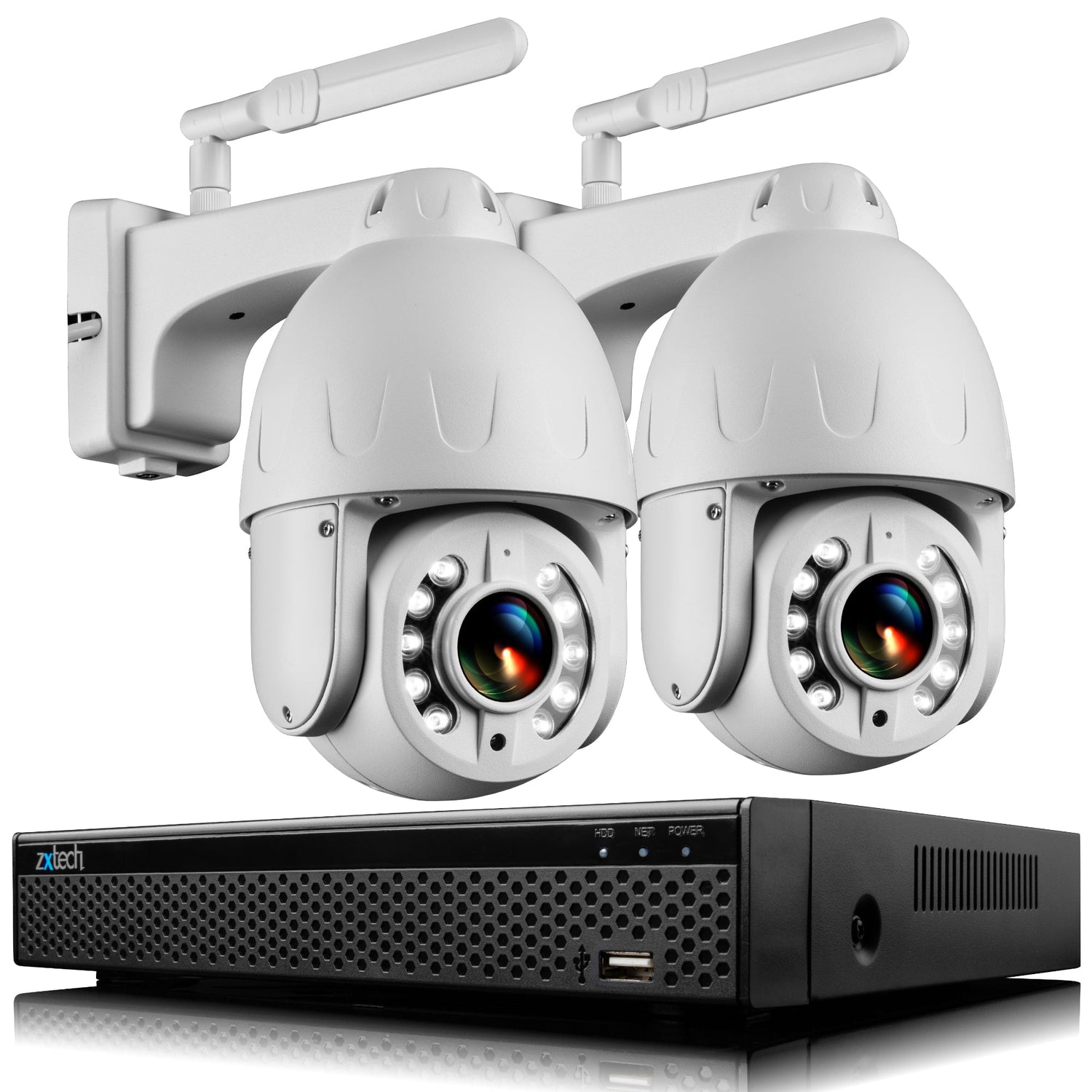

What's in the box

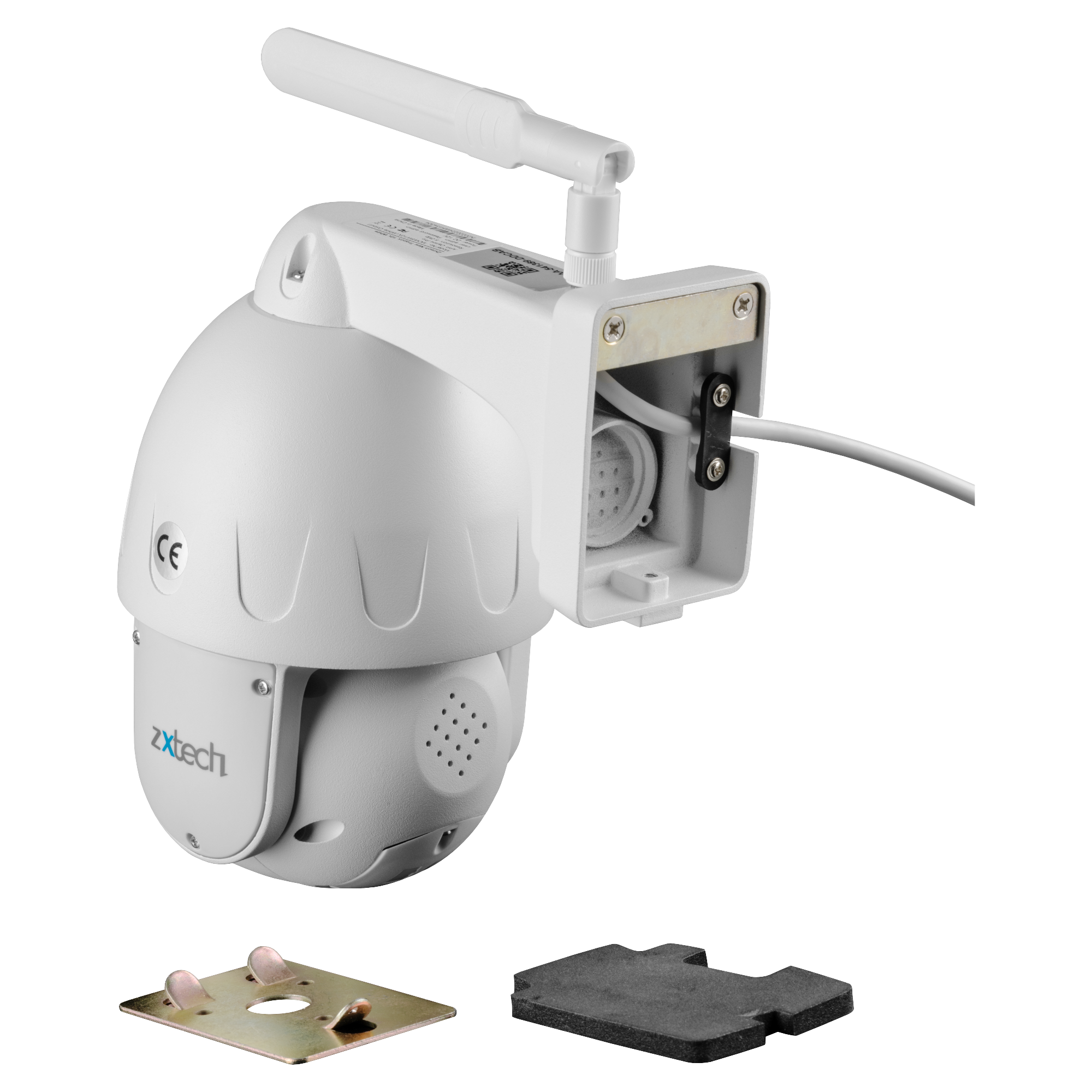

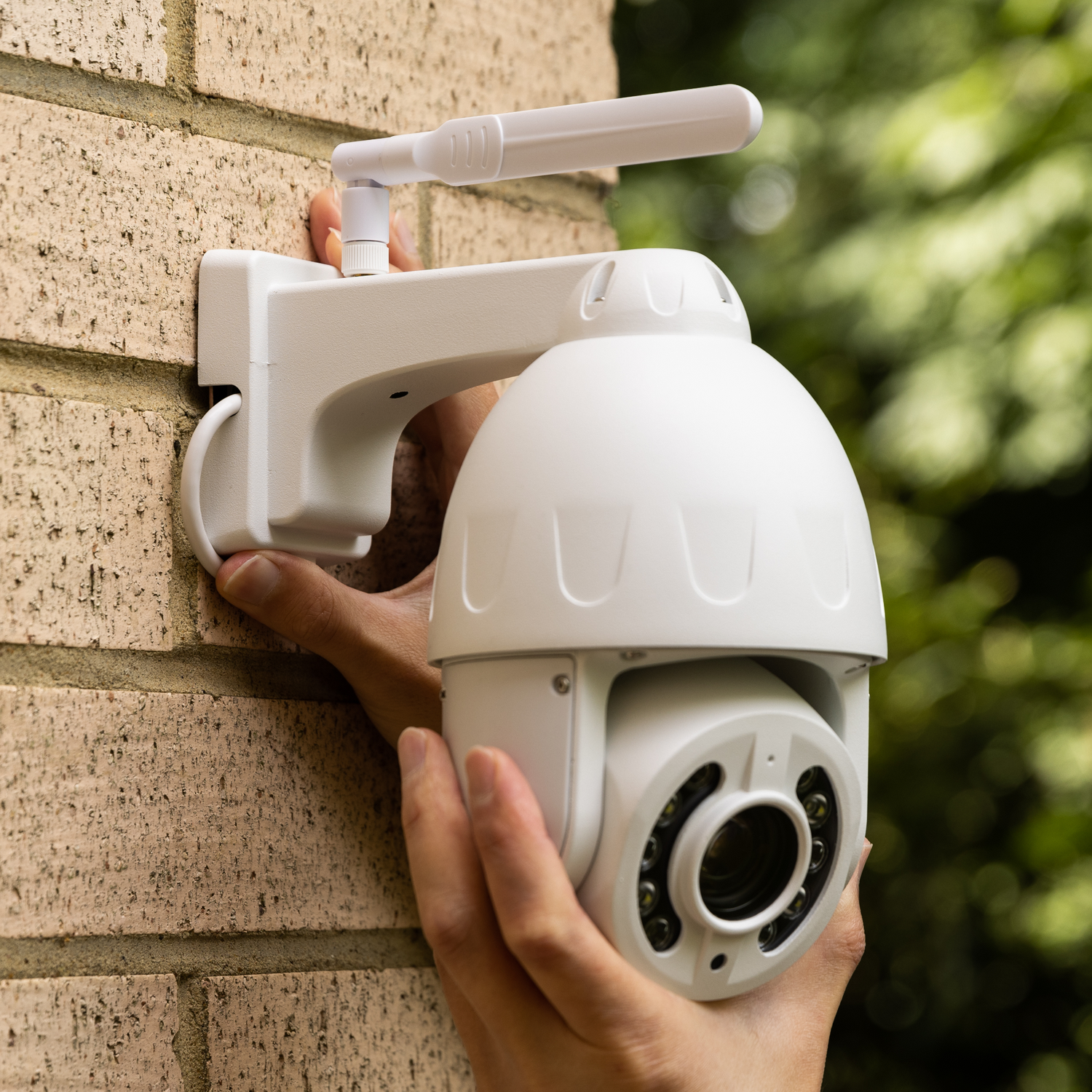

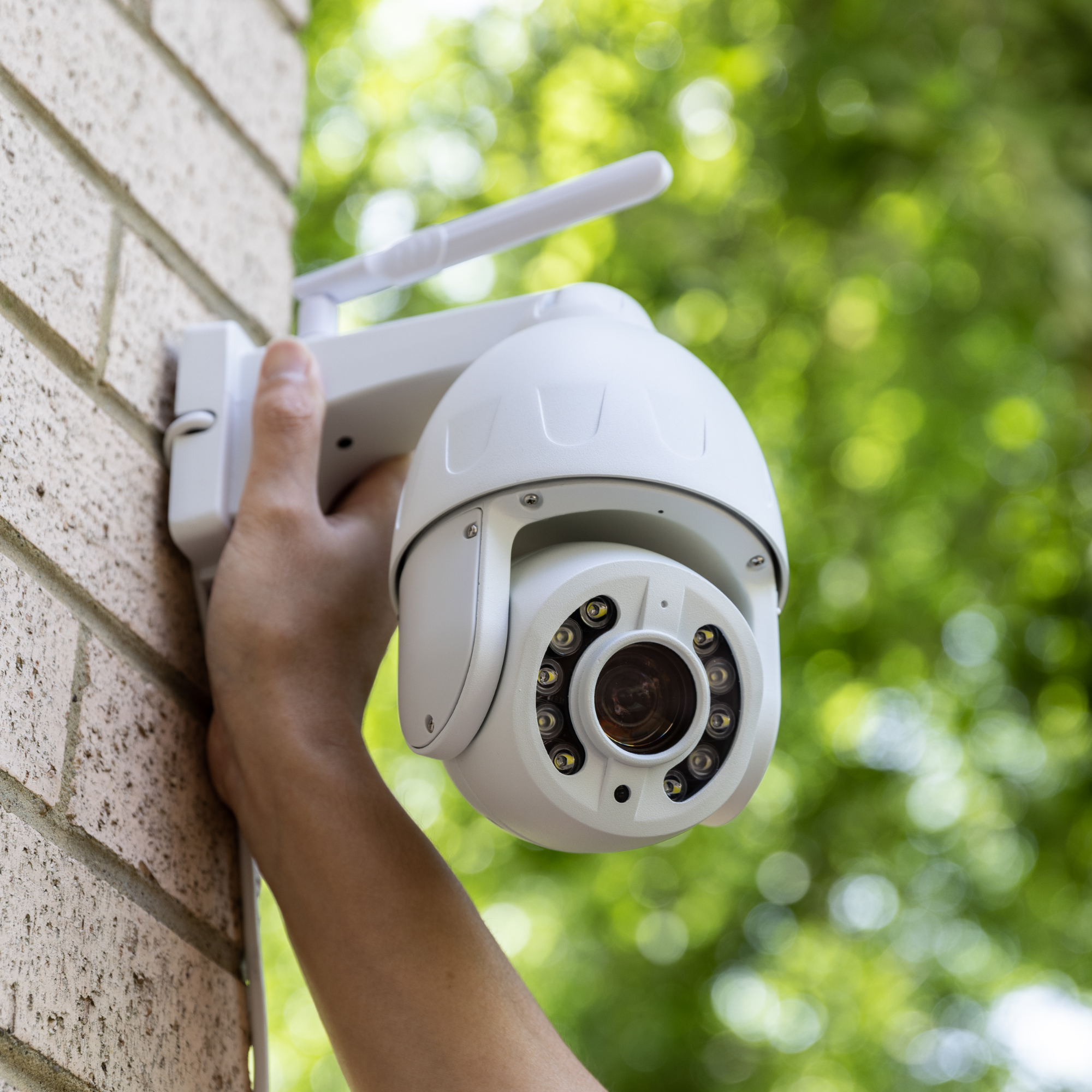

- 2 x Zxtech Tropox PTZ 5X or 10X Zoom 5MP CCTV Cameras

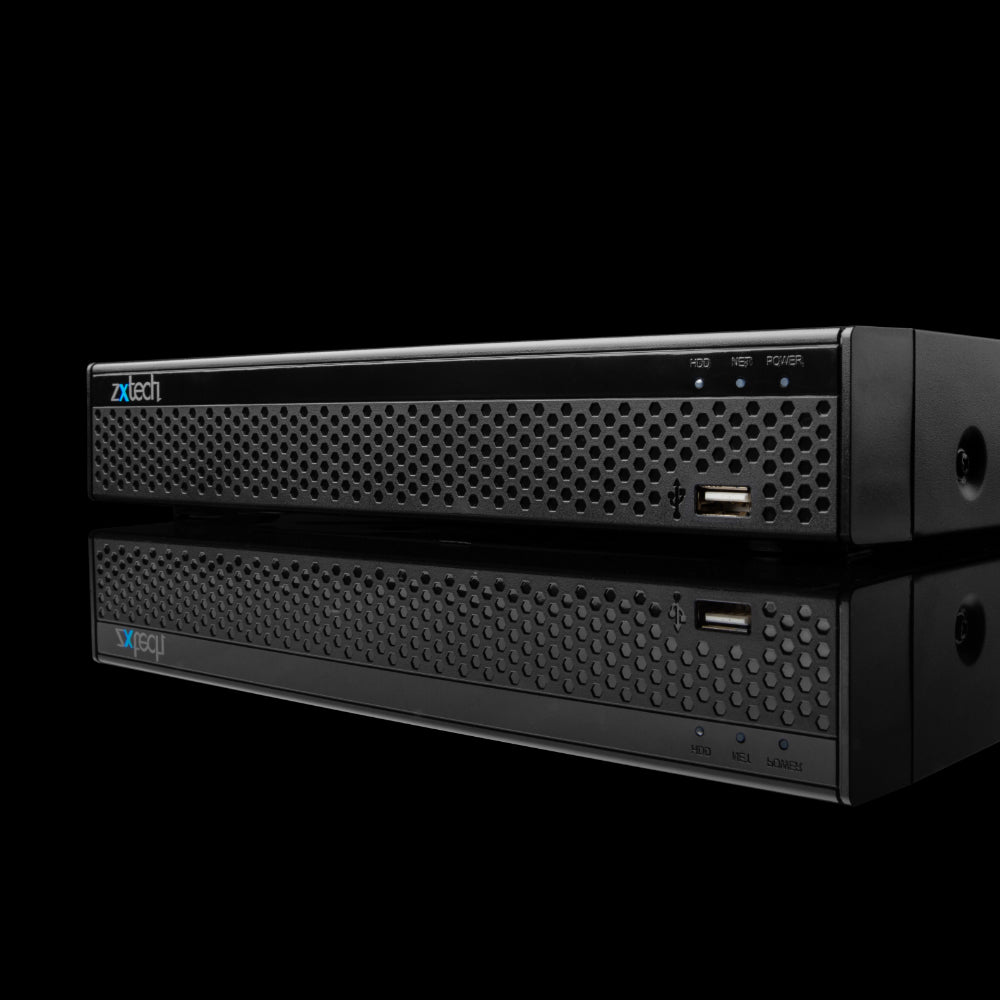

- 1 x 9CH 5MP Zxtech Home NVR
- 2 x Camera Power Adatpers with 3 Metres Leads
- USB mouse
- Optional HDD
Premium Sony Starvis Low Lux CCTV Camera Sensor
All Zxtech IP Camera range uses Sony Starvis range chips. It is the Diamond standard CCTV sensor in the industry that produces one of the best CCTV footage in the world. Sony Starvis chip also gives the camera a longer service life and much better night vision clarity. Compared to other brands that do not state clearly what chip or sensor they use, Zxtech only partners with Sony.
Insane Wireless Signal
The latest wireless CCTV PTZ camera system comes with a greatly enhanced wireless antenna that can achieve wireless strengths of 8dB. Compared to the traditional 3dB antennas, this upgrade overcomes even more installation obstacles, therefore dramatically decreasing the dropout rate versus any other wireless CCTV system.
Highly Efficient Human Recognition
With its state-of-the-art built-in artificial intelligent software, the Zxtech Tropox range features an ultra-smart face and humanoid detection capability. As soon as a person walks into the frame, the software will highlight the intruder with an optional and configurable yellow frame around the person, and it can be configured to trigger an alarm with 5 different alert options with camera side software and app.
5 Unique Ways of Getting the Alert
Once the smart alert has been triggered, there are 5 functions you can easily leverage to make your system even more useful. First of all, you can configure the camera to send a couple of images to your emails. It will require some SMTP setup, please check our DOMAR CCTV YouTube videos. Secondly, if you are an advanced server user, you can set the camera to upload pictures and videos to your FTP server. Thirdly, if you have inserted and formatted an SD card in the camera, you can configure the camera to save the picture and videos to that SD storage. Fourthly, you can download our free iOS and Android app, and receive instant mobile notifications. Finally, you can leverage the built-in speaker to play a fairly loud alarm sound, such as a siren or a dog barking sound; the sound itself can provide extra protection against a timid thief.
5MP Super HD Provides Ultra Clear Image
5 Megapixel resolution, as the name suggests, produces 5 million pixel video footage. Compare 5MP to traditional HD 720P, it is 5X clear; compare 5MP to full HD 1080p, 5MP is 2.5X clear. With the help of the amazing optical zoom-in option, you can leverage the camera to capture the car reg even if you have a super long driveway.

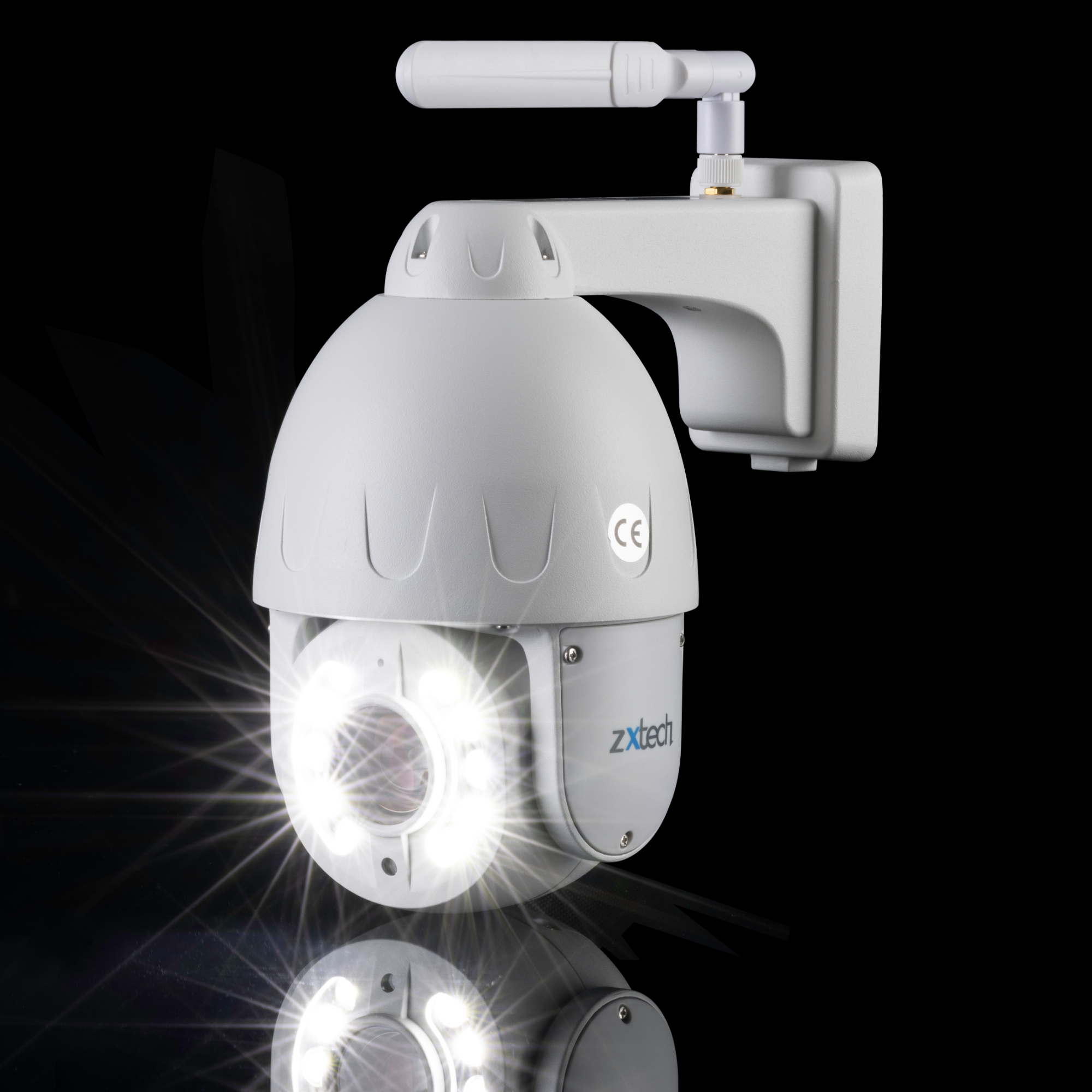

Fusion Colour CCTV Night Vision Mode
The wifi PTZ CCTV kits comes with integrated fusion infrared-LED bulbs. The infrared light wave is hardly noticeable to the naked eyes but the CCTV footage will be produced in black and white; while the LED bulbs are as bright as the camera flash they can produce full-colour night-vision footage. With both infrared and LED light bulbs integrated into a single body, you have the option to choose and configure between these two options using the camera side software.
Intelligent Infrared and LED Switch
Thanks to the infrared-LED fusion night vision light bulb, advanced image processing power and the face detection capability, the Zxtech Wireless PTZ camera has the ability to smartly switch between invisible infrared light and ultra bright LED light during the night after setting up on the app. During the quiet time, the camera will use invisible infrared light and record a traditional black and white night time footage; as soon as it notice some human movement, it will instantly switch on the bright LED light and record in full colour during the night.
Full Steel CCTV Case Against Vandalism
All zxtech IP camera range comes with a solid, vandal-proof metallic case. Holding it in your hand, you will immediately realise it's not a cheap plastic make. The camera will be able to withstand vandalism to a high level, therefore protecting your security footage from the brutal force.
PTZ CCTV Camera with Built-in Sound Recording and Instant Talk Back
The new Zxtech PTZ Wireless Security Camera range comes with both a built-in microphone and speaker. Without needing to connect to external audio devices, and under most circumstances with complicated cabling, you have all of it already integrated tightly with the camera and the app. You can simply tap to talk through the camera, listen to the live streaming, or playback the recording with audio.

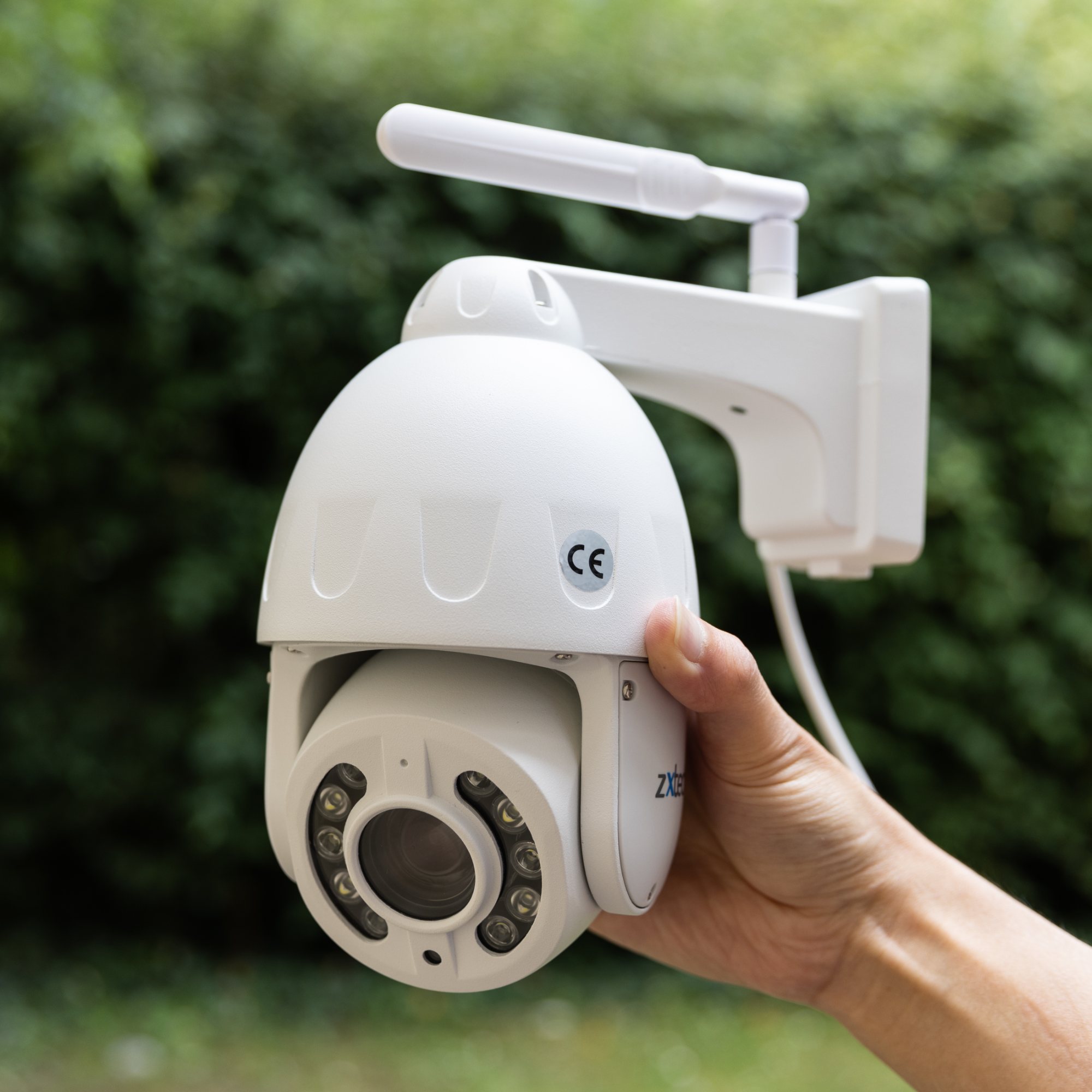

PTZ CCTV Camera with 5X/10X Zoom
Compared to other PTZs with 4-digit price tags, The new Zxtech Wireless PTZ cctv system comes with fully-fledged PTZ options at a very affordable price. Simply go to the pan, tilt and zoom functions on our free mobile app, and you will be able to control the camera remotely anywhere in the world. You can also set up the patrol routine on the app by following our step-by-step guide. You can choose to buy a 5x optical zoom option or a 10x optical zoom option. In addition, you can use our recorder, or desktop software through the recorder to control the PTZ on a computer.
PTZ Camera with Waterproof for British Weather

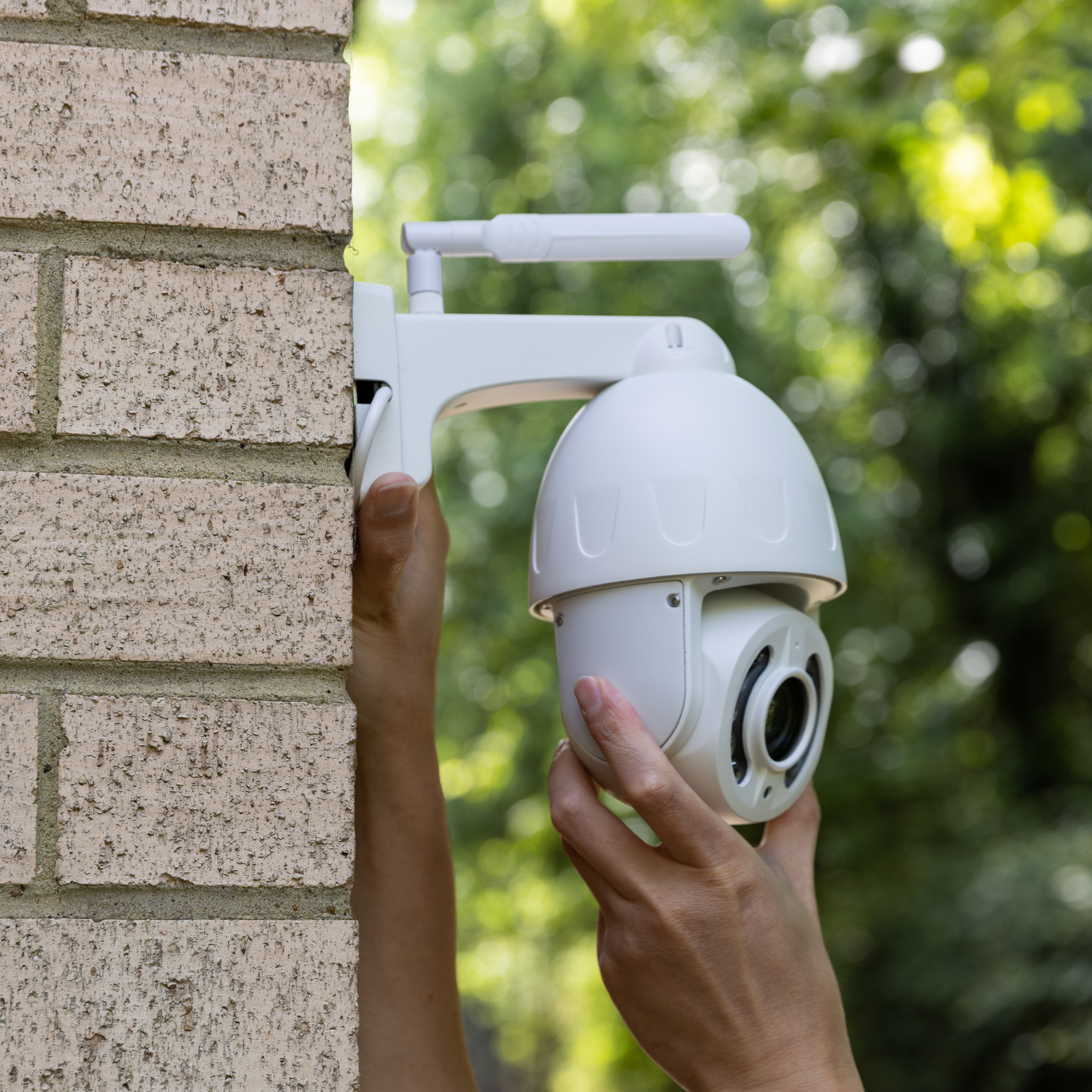

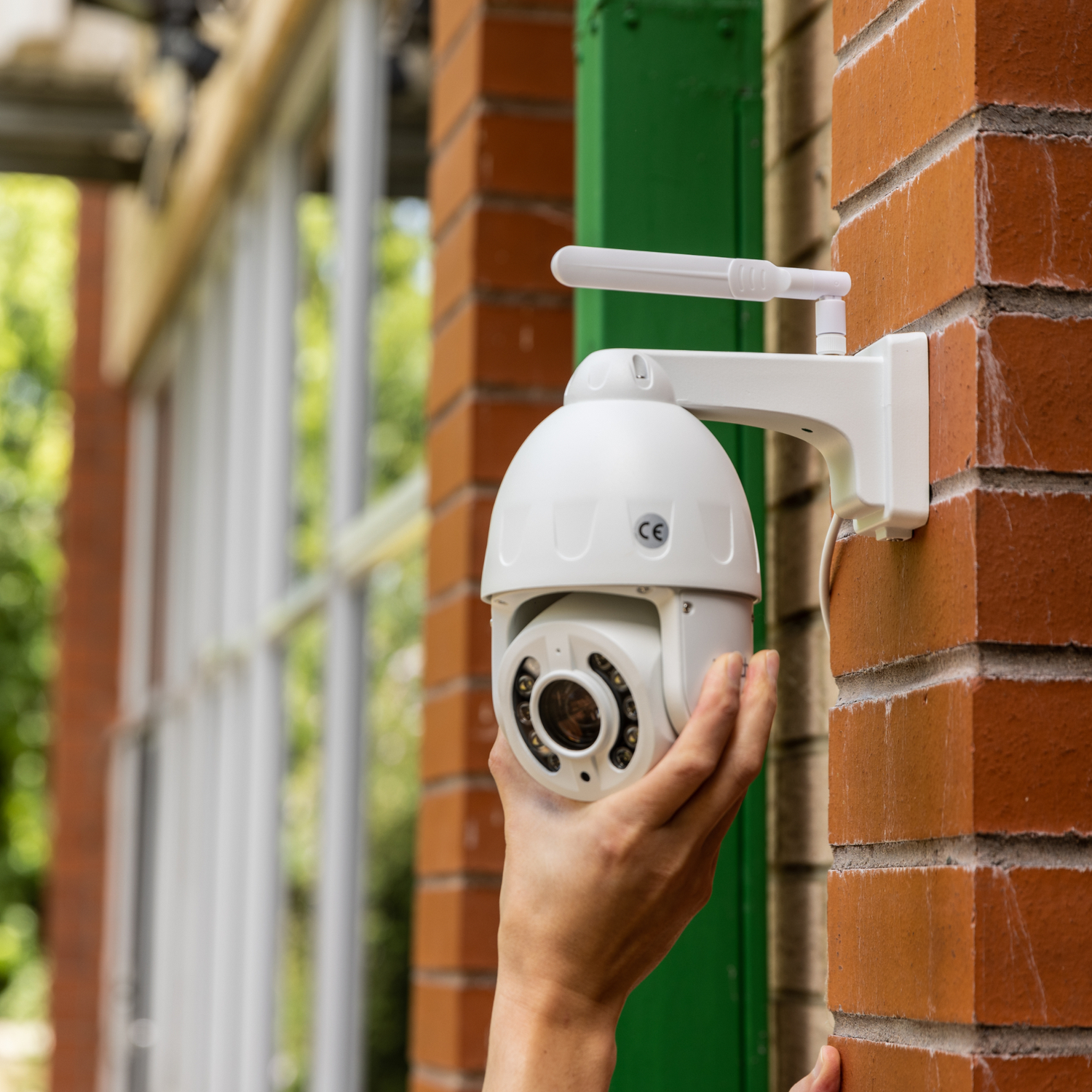

The Zxtech PTZ Wireless Security Camera is designed to suit British weather. With proper installation, the camera will be able to withstand most of the horrible weather conditions we normally experience in the UK. If you are installing the camera somewhere constantly exposed to the rain, be sure to consider an installation location such as under the porch to extend the camera longevity even longer.

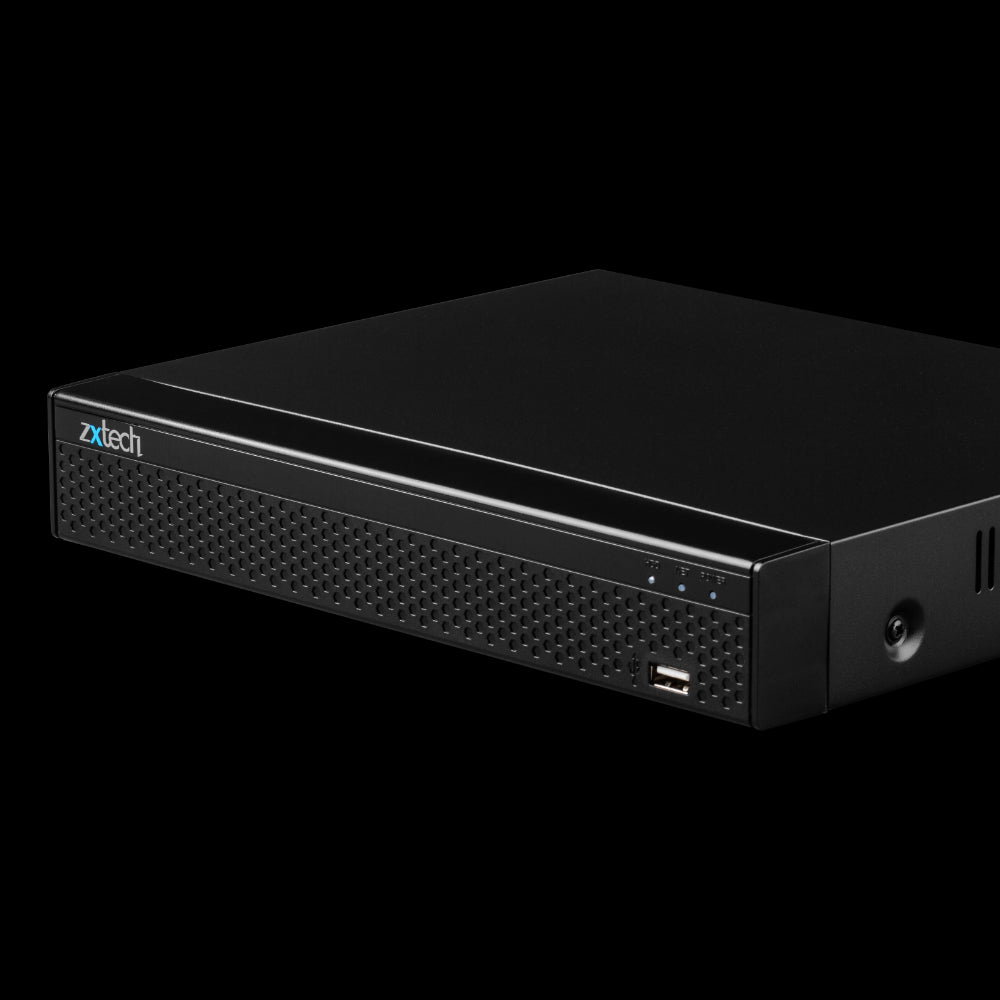

CCTV NVR System with Next Generation Interfaace
The new latest refreshed design and web UI provides a more fluent and intuitive experience for users. It has a brand new live view/ playback and configuration interface, is also equipped with many new features and functions.

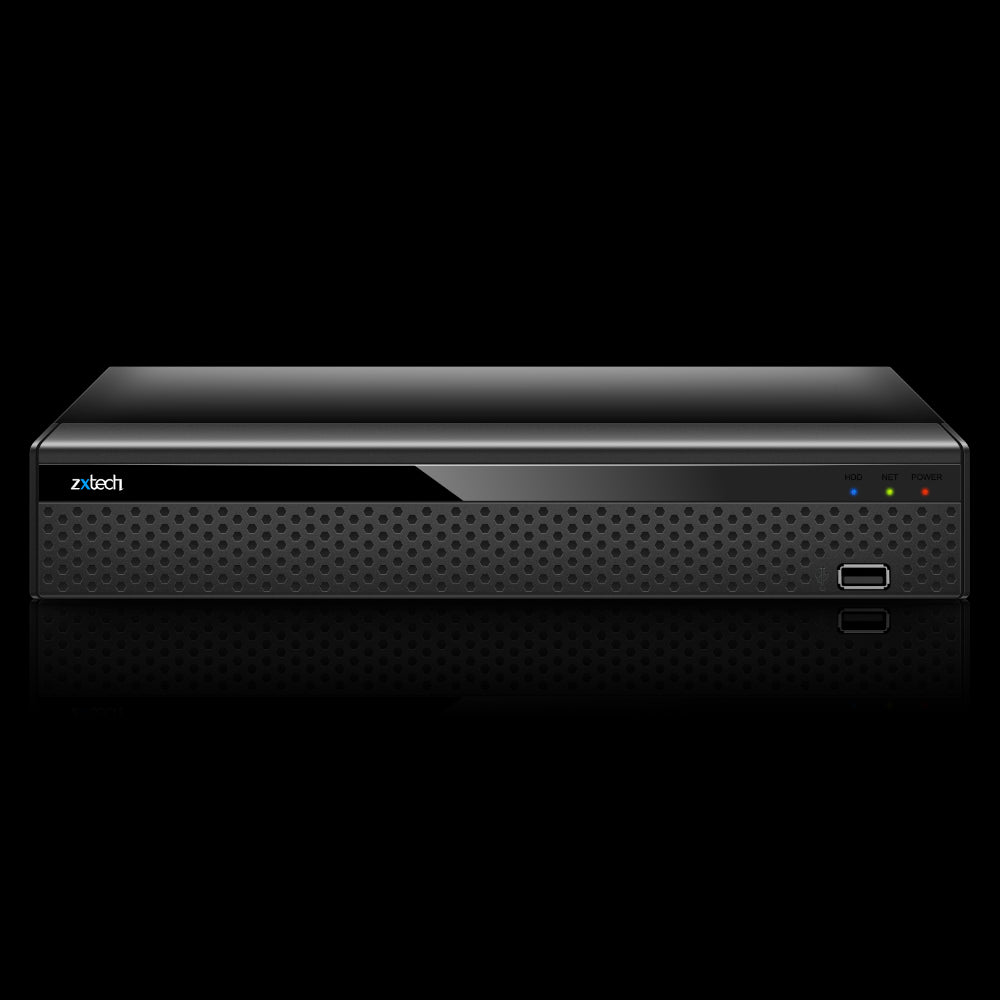

5MP CCTV NVR supports Dual Screen
HDMI and VGA ports inbuilt helps you hook up two monitors to the unit and watch the property from two rooms. View cameras on multiple monitors simultaneously. Easy and hassle-free. You can simultaneously connect your recorder up to 2 TVs, one connects with a VGA cable, another one with HDMI cable. One monitor may be in your living room, another one in your home office.
Motion Record, Alerts, 5MP, Loop recording
The included NVR unit is coming with the latest interface, easy to install and user-friendly. Modern and compact and yet supports motion detection, alert and buzz. In-built connectivity with Audio and USB port. The CCTV NVR support H.265+ makes it an efficient way to store your footages and save HDD space. The recorder supports up to 9 Channels, connecting up to 9 IP cameras. The NVR has easy mobile access so you connect to your cameras anytime and anywhere. Powerful module supporting 5MP video recording and up to 8TB HDD. Multi-language interface and loop recording for your convenience.
Smart Storage Options
Loop recordings allow you to keep recording even when the storage is full. The NVR will start replacing the oldest footages. Continuous recording and overwrites the oldest footages with the newest ones. Keep recording at all time, what more convenient than that. This is an important features for any surveillance system.
Internal Storage Option
We recommend you get an external NVR for bigger and longer recordings. However, with its built-in SD Card slot, you have the option to record all the CCTV footage into the camera by inserting an SD Card with a maximum storage capacity of 128GB, without needing an external recorder. The storage will be used in a loop-recording fashion, which means once the SD card is full, it will start to recycle the storage in a first-in-first-out fashion.
AI Smart Face Detection
If you connect Zxtech AI cameras to the recorder you will be able to use face detection feature. Connecting to Zxtech Smart AI cameras you are able to enable line crossing, loitering, intrusion detection and people gathering. The recorder supports motion detection, privacy masking, email alerts and mobile notifications. Using Bitvision app you can remotely monitor anytime and anywhere.

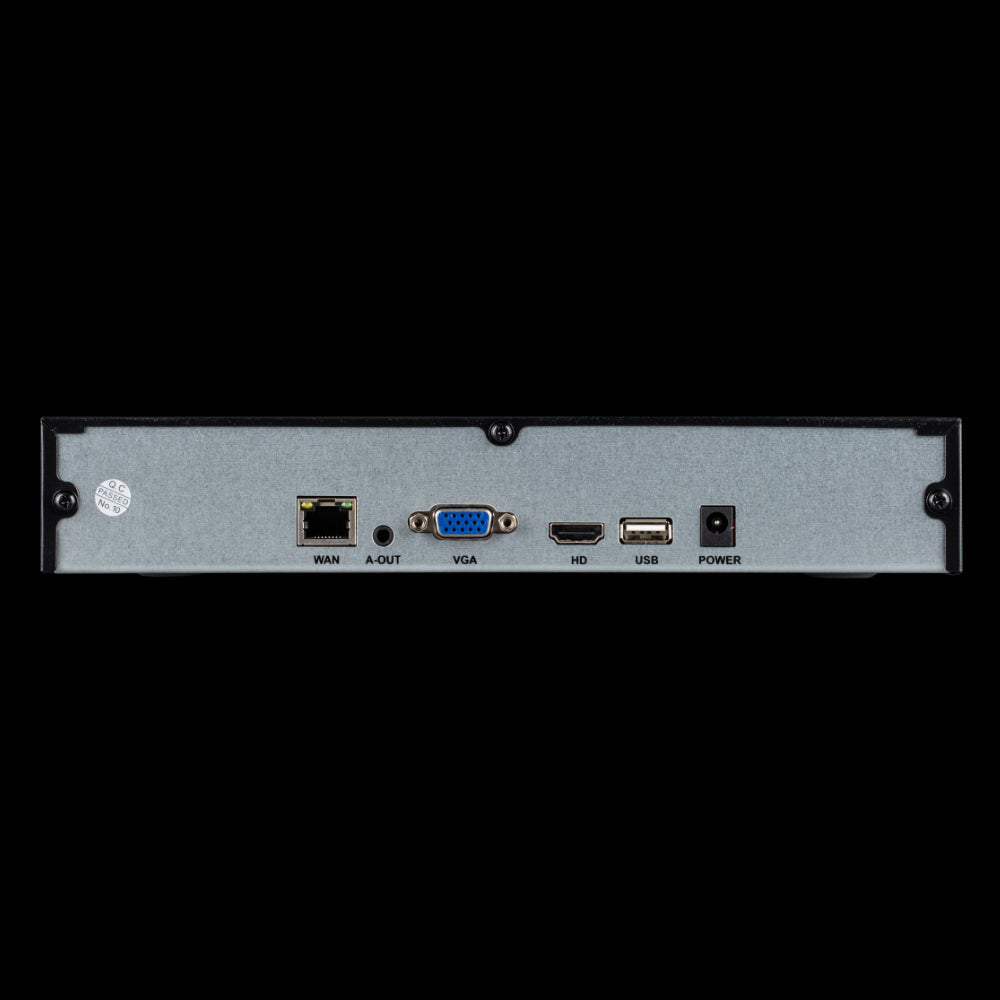

The CCTV NVR supports 9channel vido input nd connects up to 9 IP cameras at up to 5MP resolution. Comes with 12V power input, 2x USB ports (front and back), 1x HDMI and 1x VGA port, 1x Audio Out to connect an external speaker to play sound, 1x Network port to connect the recorder to Internet.
The Easiest Mobile Setup Ever
The new Tropox, in fact, all zxtech IP range, comes with an ultra-easy mobile setup process. Once you have registered with the app, you will be able to load up the camera within a couple of minutes. The configuration is very intuitive, and you won’t need extensive networking experience to get the app set up. Once it's loaded up, you will be able to view live streaming, playback the recordings, talk and listen, control the PTZ and configure the camera anywhere in the world with the camera side app.
|Main Processor||ARM Cortex A7 Processor|
|Operating System||Embedded Linux|
|Video Input||9CH (2592*1944, 2048*1536, 1920*1080, 1280*960, 1280*720, etc.)|
|Video Output||1 VGA, 1 HD|
|Audio Output||1 Port RCA (Linear, 1 k)|
|Audio Bit Rate||64 Kbps|
|Audio Compression Standard||G711u, G711a, G726|
|Motion Detection||9 Channel, MD Zones: 396 (22x18)|
|Trigger Events||Recording, Email, FTP, Snapshot, Buzzer and Screen Tips|
|HD Output1||1920*1080/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz|
|VGA||1920*1080/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz|
|Display Split||9CHxD1/ 8CHxD1/ 4CHxD1/ 1CHx1080P/ 1CHx3MP/ 1CHx4MP/ 1CHx5MP|
|OSD||Camera Title, Time, Recording, Motion Detection|
|Resolution||5MP (2592*1944), 4MP (2688*1520/2560*1440), 3MP (2048*1536), 1080p (1920*1080), 960p (1280*960), 720p (1280*720), D1 (720*576/720*480)|
|Record Rate||PAL: 5MP@9*25fps, 4MP@9x25fps, 3MP@9x25fps, 1080p@9x25fps, 960p@9*25fps, 720@9x25fps, D1@9x25fps NTSC: 5MP@9*30fps, 4MP@9x30fps, 3MP@9x30fps, 1080p@9x30fps, 960p@9*30fps, 720@9x30fps, D1@9x30fps|
|Record Mode||Manual/ Timer/ Motion Detection/ Smart Alarm|
|Local Sync Playback||1CH 5MP@30fps, 1CH 4MP@ 30fps, 2CH 3MP@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps|
|Decode Capability||4CH 1080p@30fps|
|Remote Sync Playback||Yes|
|Search Mode||All, Channel, Manual, Time, Date, Motion Detection|
|Playback Functions||Play, Pause, Stop, Rewind, Fast Play, Slow Play, Full Screen, Frame Play, Frame Rewind, Digital Zoom|
|Backup Mode||USB Device/Network|
|Interface||1 RJ45 10M/100/1000M Adaptive Ethernet Interface|
|Network Functions||TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP, p2p|
|Onvif Version||Support Onvif 2.4|
|Web Browser||IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)|
|CMS Software||Support Windows 7/Windows 8/ Windows 10/MAC OS|
|Cloud Support (P2P)||Yes|
|Smart Phone||iPhone, iPad, Android, Android Pad|
|Interface Type||1 SATA Interface|
|Capacity||Up to 8TB Capacity|
|Language||Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa, German, French, Portuguese, Turkish, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek|
|USB Interface||2 USB 2.0 Interfaces|
|Dimension (WxDxH)||219x217x40 (mm)|
|Weight||2.0 kg (without HDD)|
|Sensor||5 Megapixel 1/2.8" SONY335 STARVISlow lux CMOS|
|Video Resolutoin||Main stream: 2560 x 1920 pixel @ 15fps, 2560 x 1440 pixel @ 15fps|
|Sub stream: 800 x 600 / 800 x 448 @25fps, 640 x 480 / 640 x 352 @ 25fps|
|Video compression||H.264 / H.265|
|Lens||5x Zoom Option: 2.7 - 13.5mm 5x optical zoom autofocus lens|
|10x Zoom Option: 5 - 50mm 10x optical zoom auto focus lens|
|View angle||5x Zoom Option: 108.1° - 30.3°|
|10x Zoom Option: 61.5° - 7°|
|Night vision||10 units of Smart Dual Light Source LED (IR & Warm White), night vision distance up to 60m|
|Audio compression||G.726 / G.711|
|Audio code rate||8Kbps, 16bit|
|Audio input/output||Built-in mic and speakers; support two-way audio|
|Motion detecting alarm||Can set 4 independent detection regions (1-100 sensitivity can be set)|
|Alarm linkage||Set alarm to send a captured picture to your email|
|Set alarm to upload pictures and videos to the FTP server|
|Set alarm to record pictures and videos to Micro SD card|
|Set alarm to push notification through our free app|
|Set alarm to trigger loud sound alarm through a build-in speaker such as a siren or dog bark|
|Wifi Antenna||Enhanced 8dB|
|Wireless||IEEE 802.11 b/g/n|
|Onvif protocol||Support ONVIF 2.4 (backwards compatible)|
|Micro SD card||Support up to 128G micro SD card|
|Recording mode||Alarm triggered recording and scheduled recording|
|Video playback||Playback available on our free App, IE browser and remote client; Playback the downloadable footage with various types of media players|
|Rotation angle||Horizon: 350°, Vertical: 90°|
|Preset||Set up to 8 preset points and supports cruise functions|
|Operating environment||Environment -20°C ~ +60°C (-4°F ~ +140°F)|
|Humidity 10% ~ 90%, non-condensing|
|Material||Full metal body|
