Zxtech 4K CCTV System - 16 x IP PoE Cameras Motorised Lens Face Detection Outdoor Sony Starvis | RX16C16X

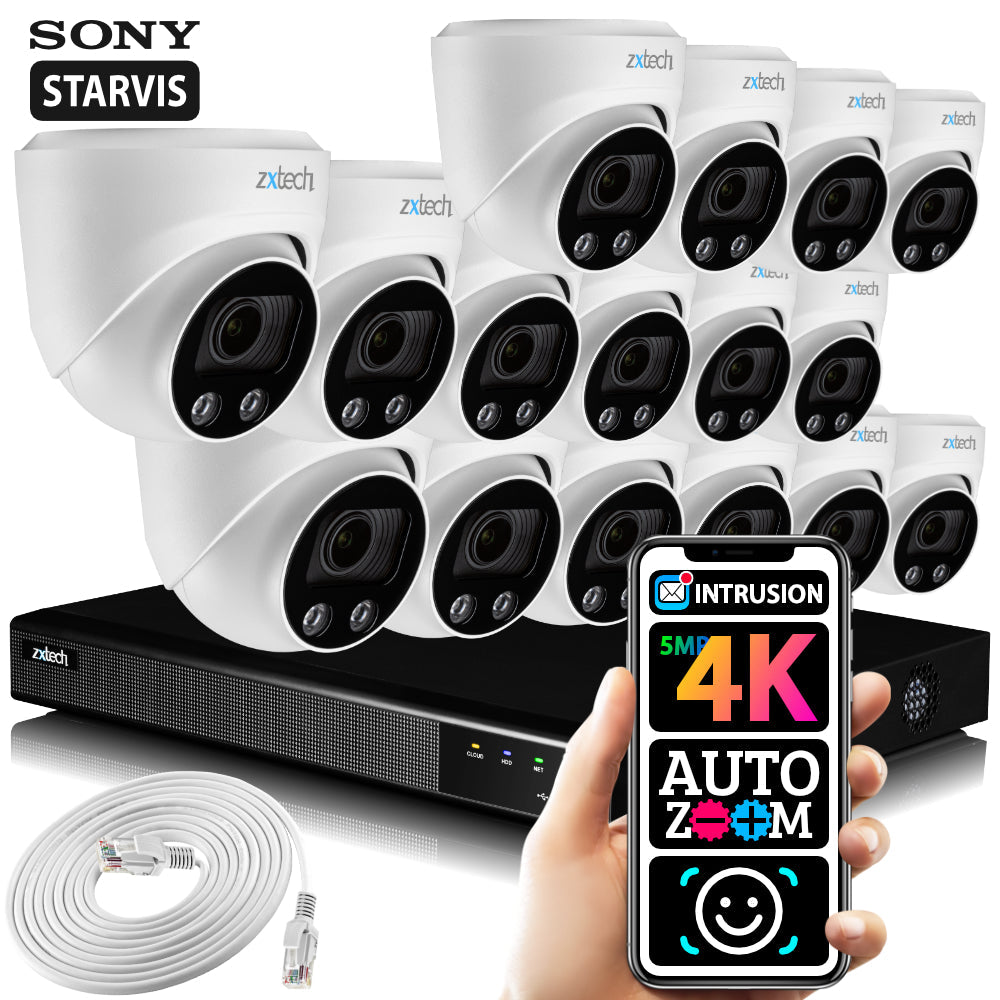

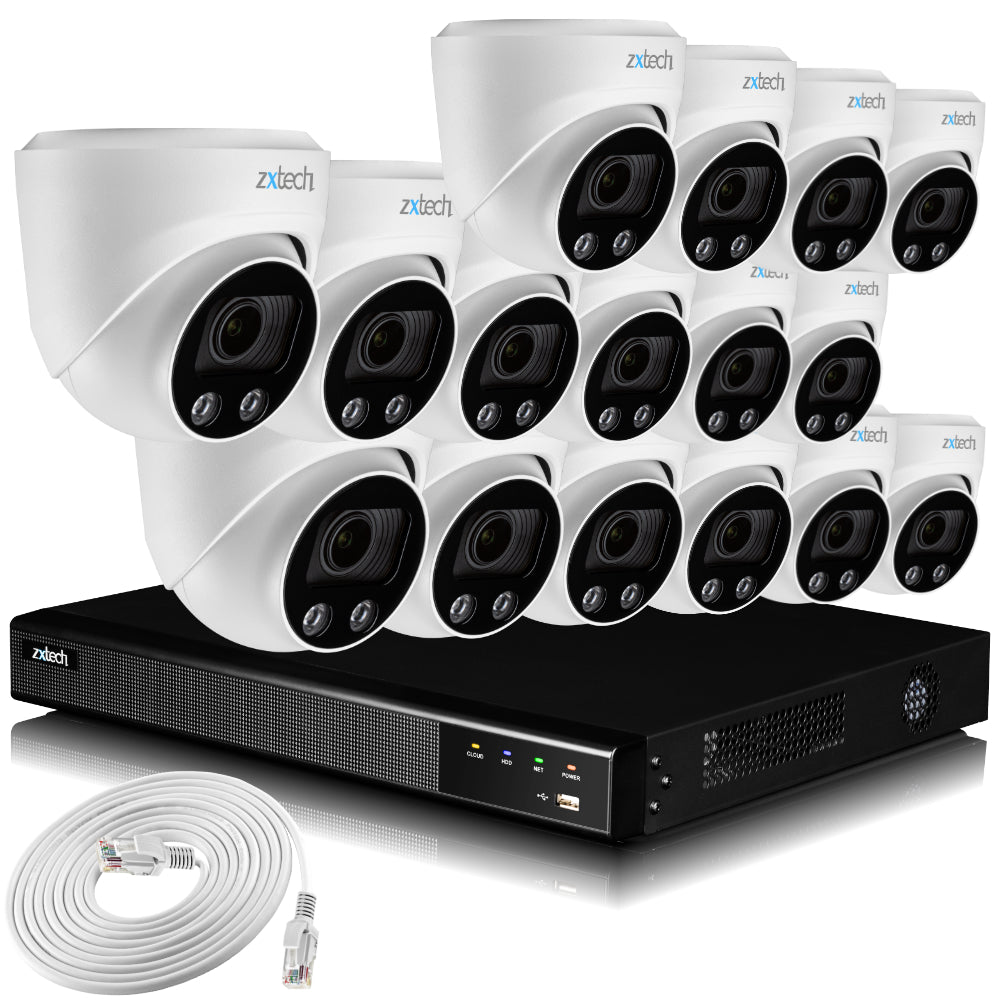

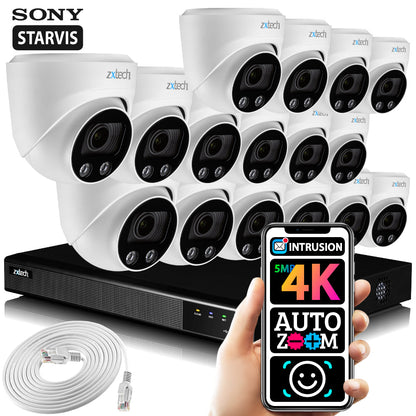

What’s in the Box

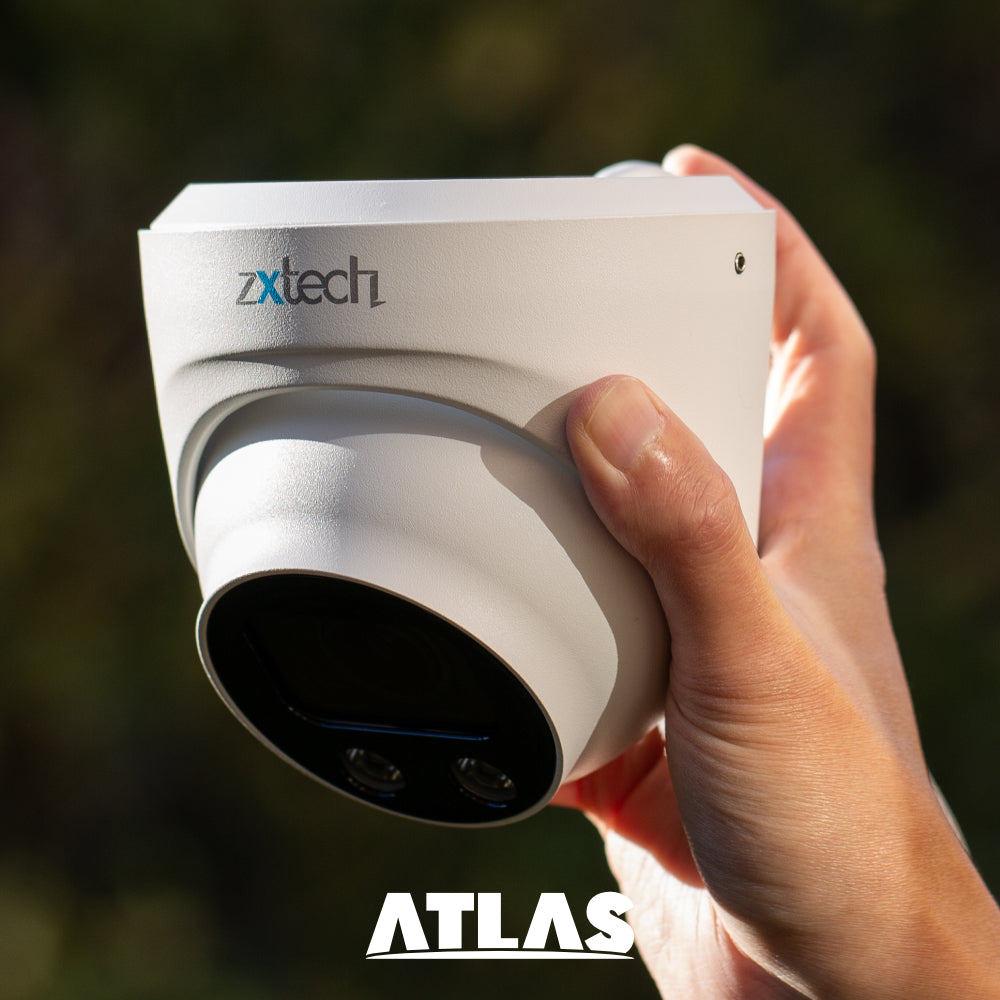

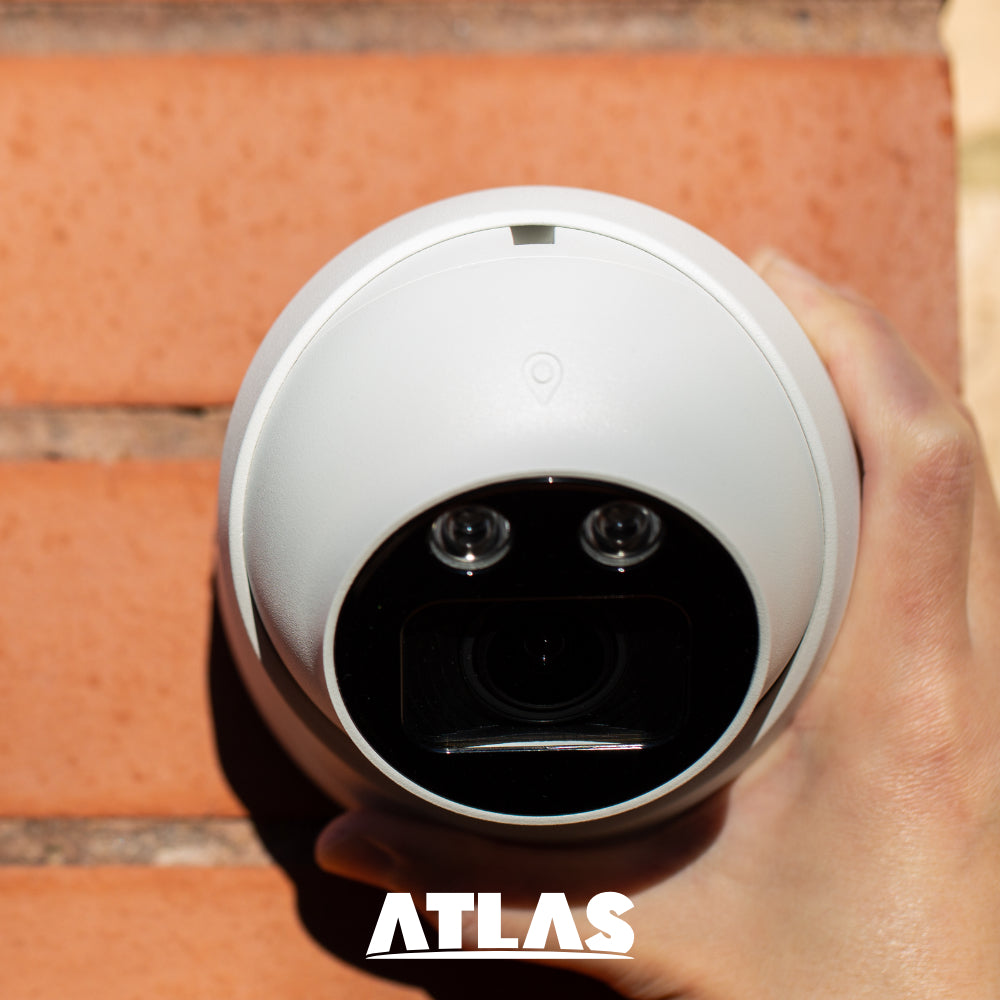

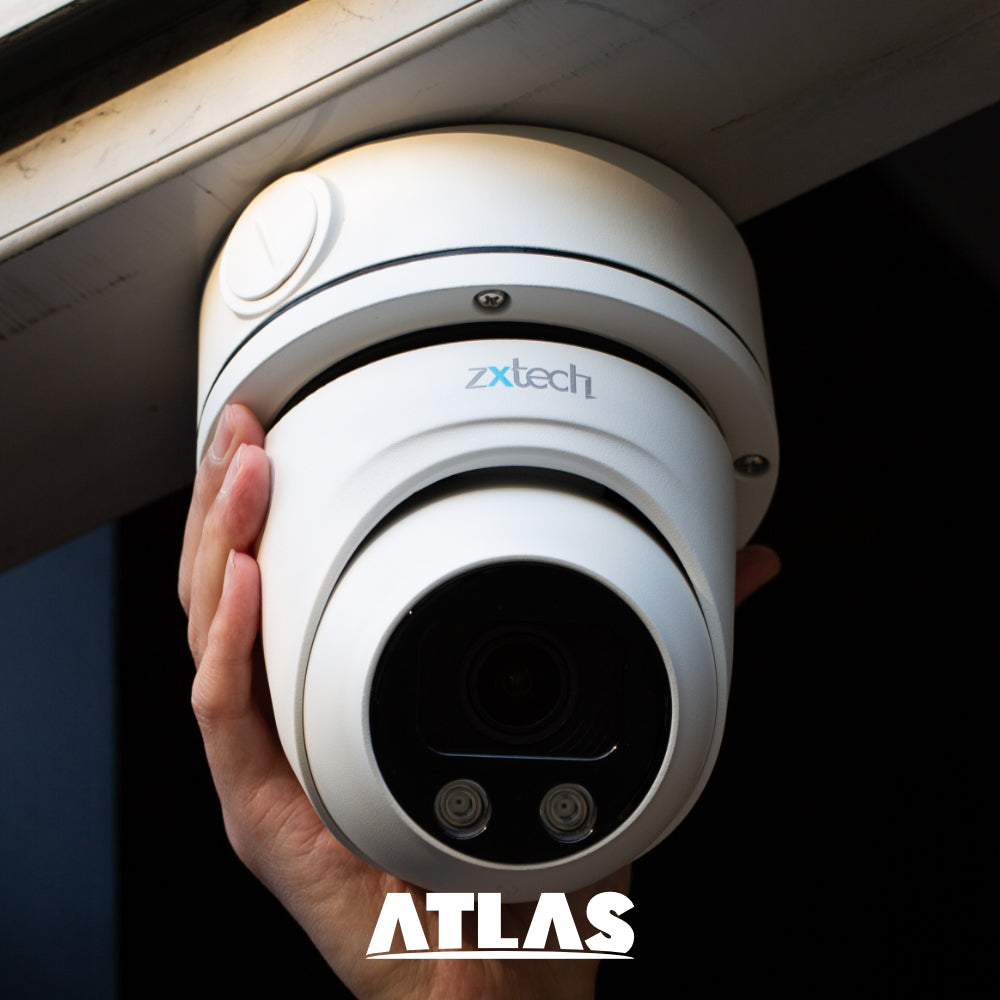

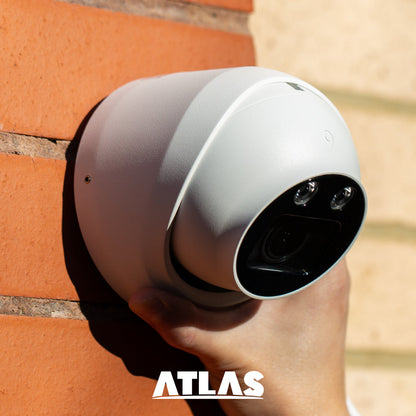

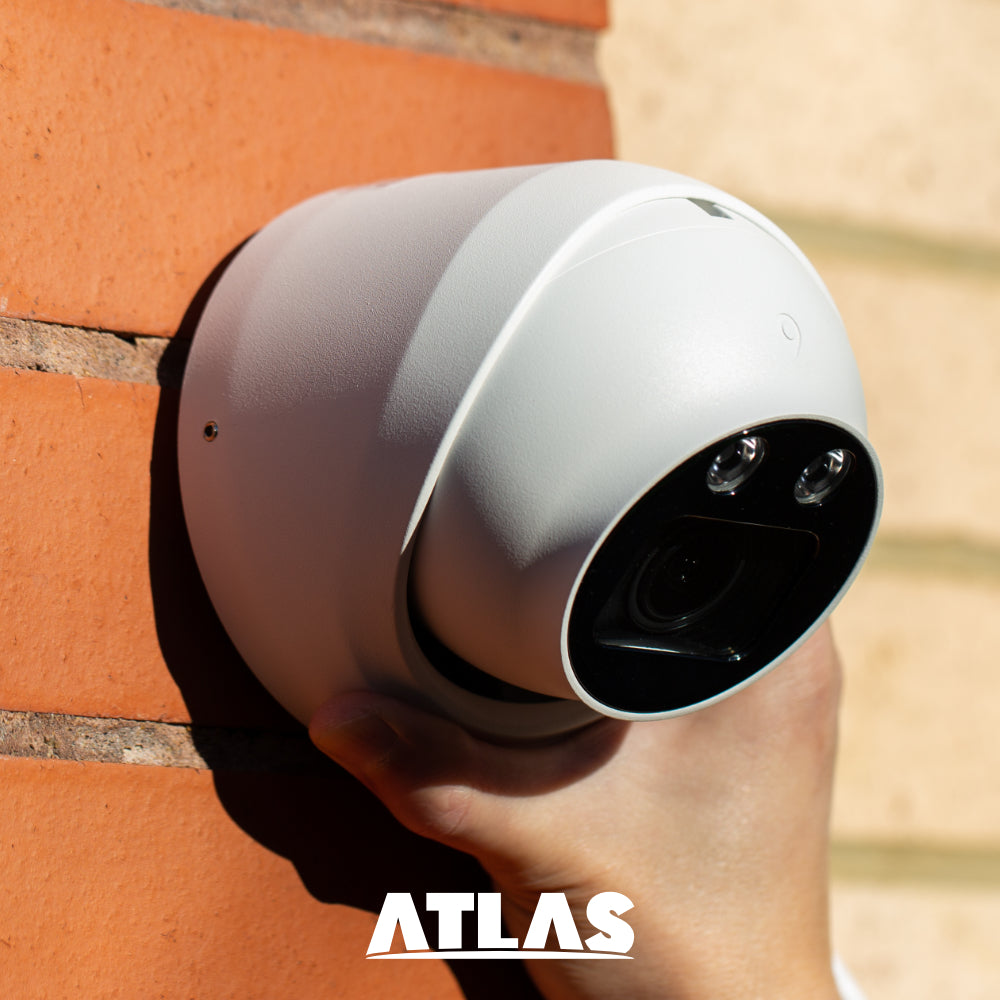

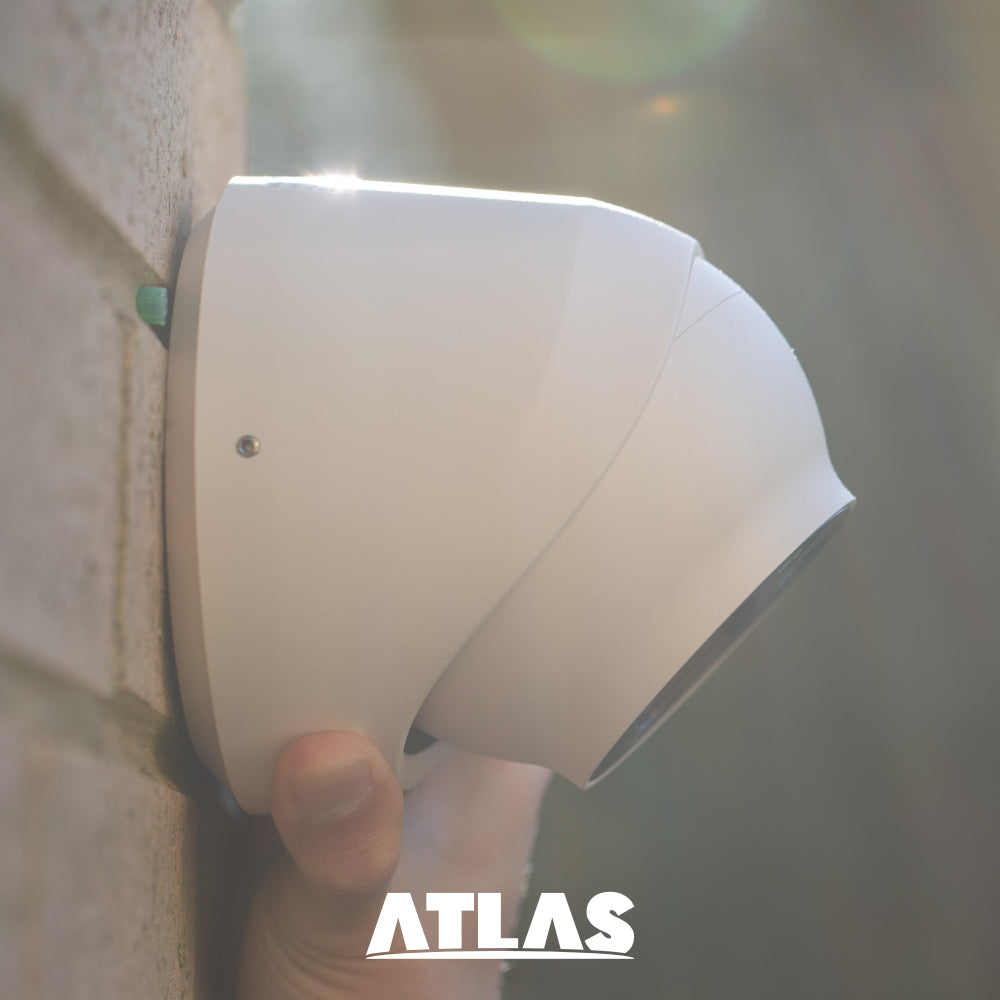

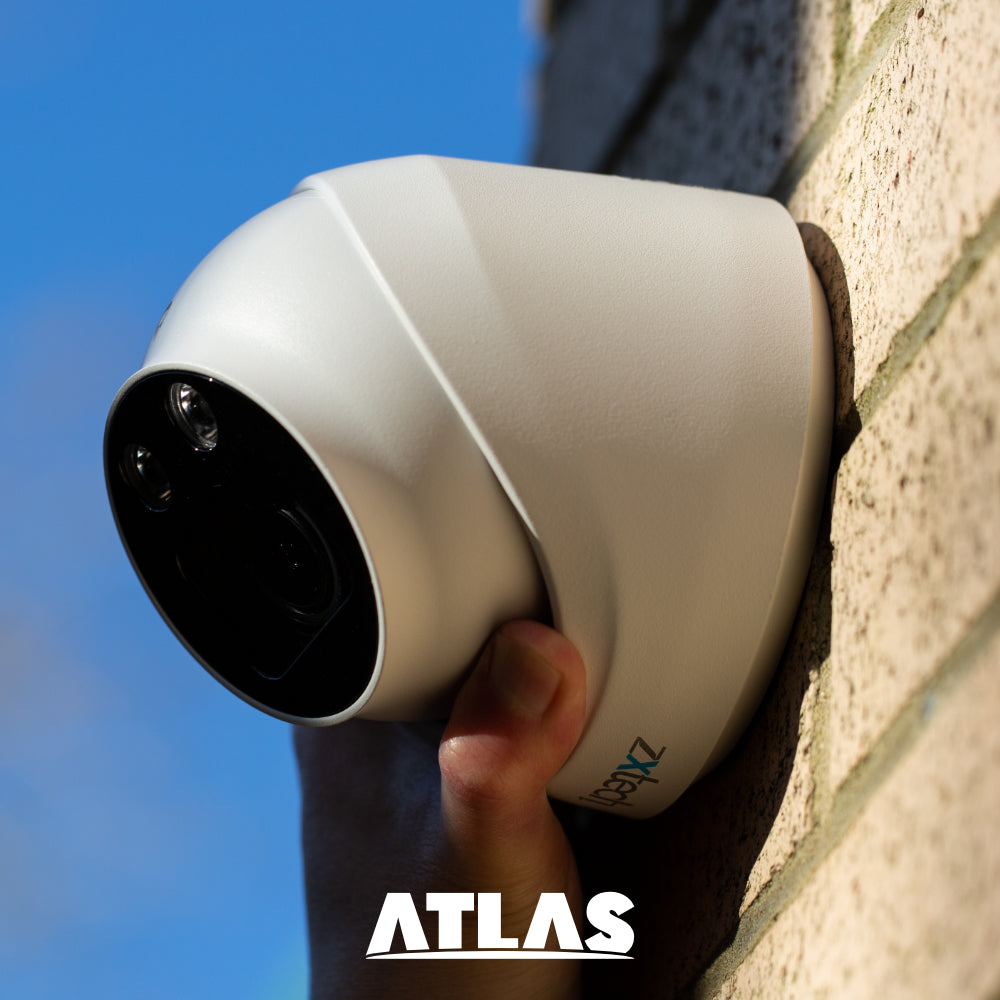

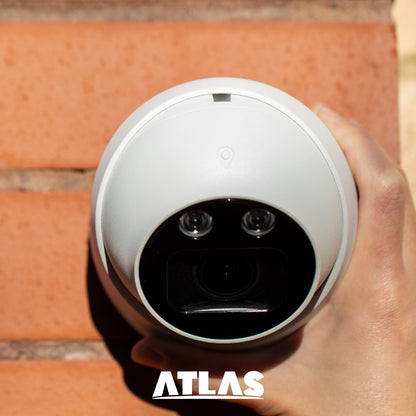

• 16 x Zxtech White Atlas 4K AI CCTV Camera

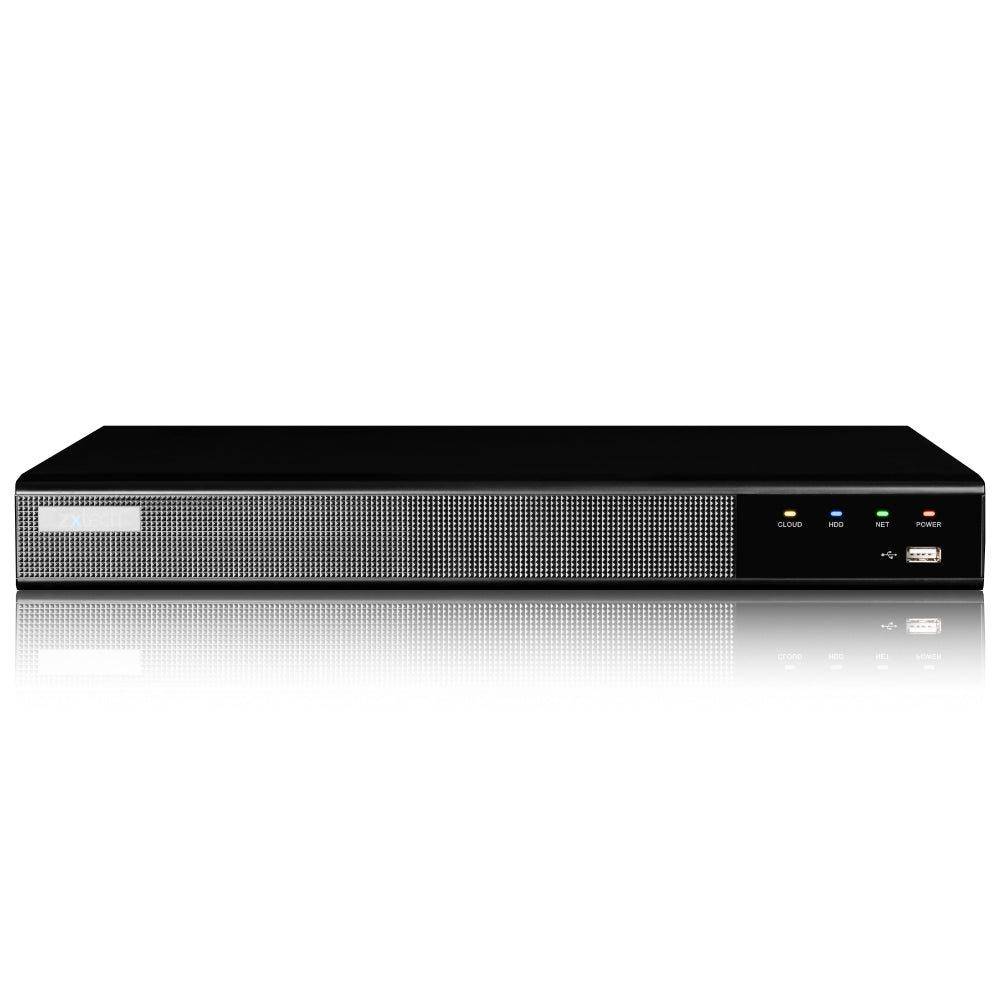

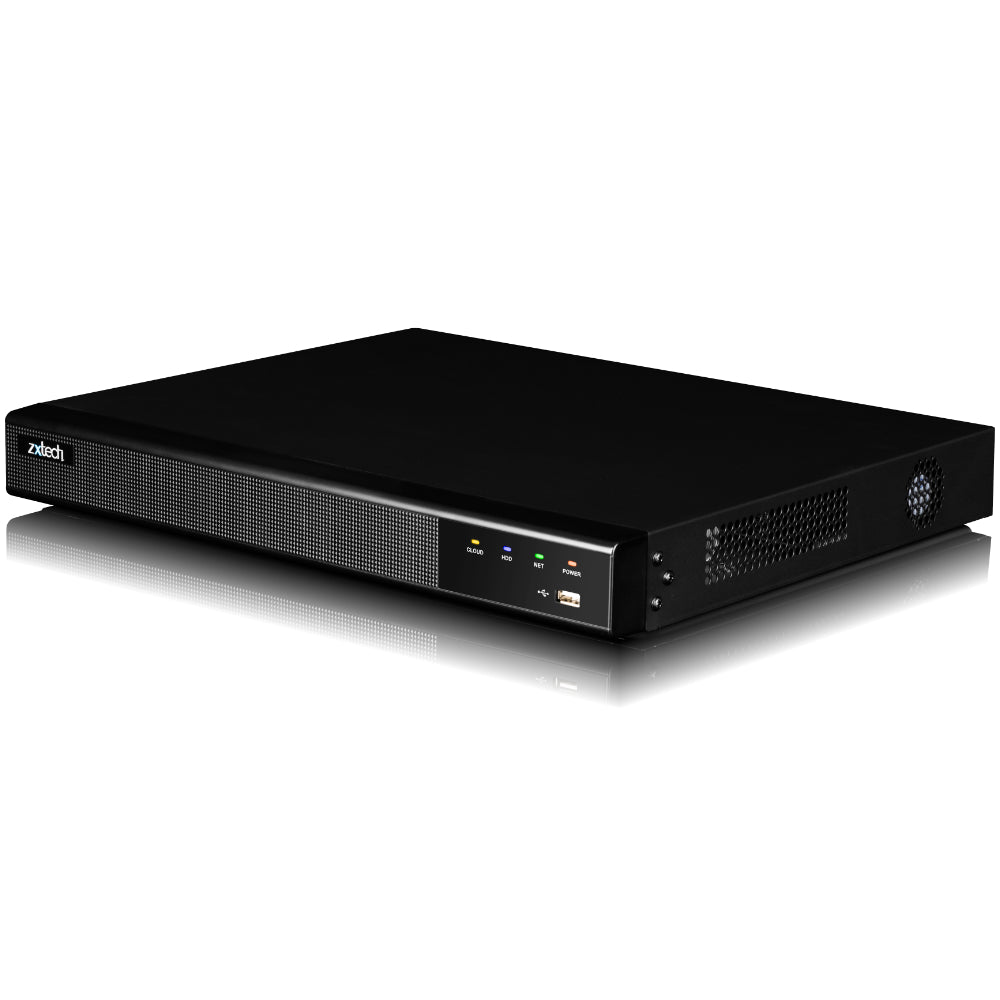

• 1 x Onyx 4K 16 PoE or Optional 24 PoE NVR
• 8 x 10M cables, 8 x 20M cables and 1 x 2M PoE Cables

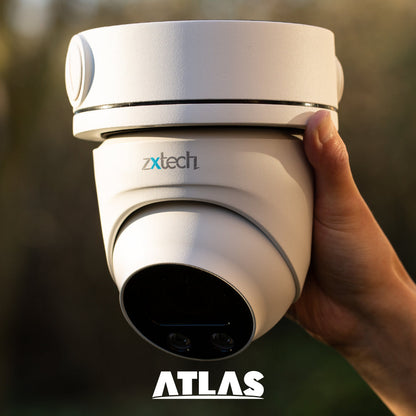

• Optional HDD & Optional Deep Base

System Feature

• 【4K/UHD/8MP/5MP/4MP】 Zxtech is proud to introduce its new Atlas range of 4K 8MP Ultra HD security systems, delivering crystal-clear 3840 × 2160 footage, with optional 5MP versions available. Paired with a 4K-capable CCTV NVR, this system captures images up to four times sharper than 1080p.
• 【Sony Starvis Sensor】At the heart of these cameras is a Sony Starvis sensor, chosen for its superior image quality, outstanding low-light sensitivity, and refined image clarity. It also helps minimise blur caused by low-frequency vibration, ensuring sharper, steadier footage and a more premium level of performance day and night.

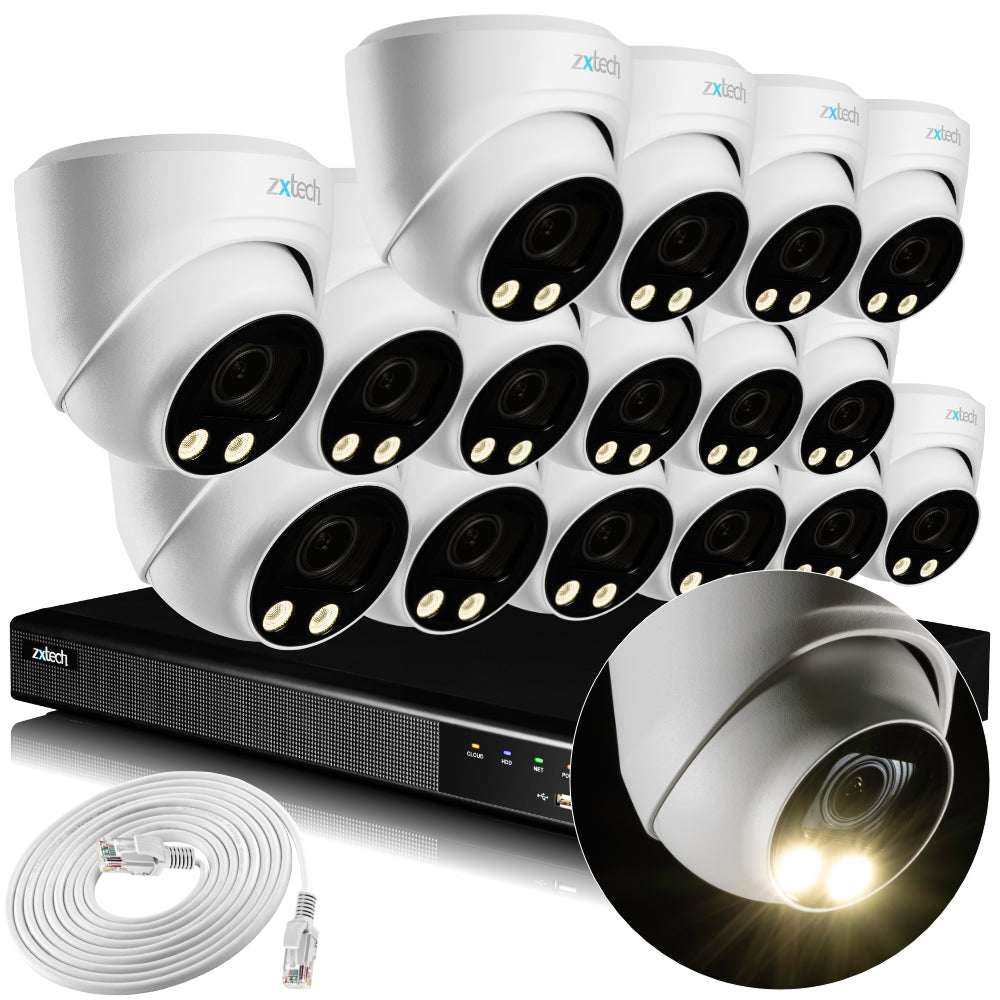

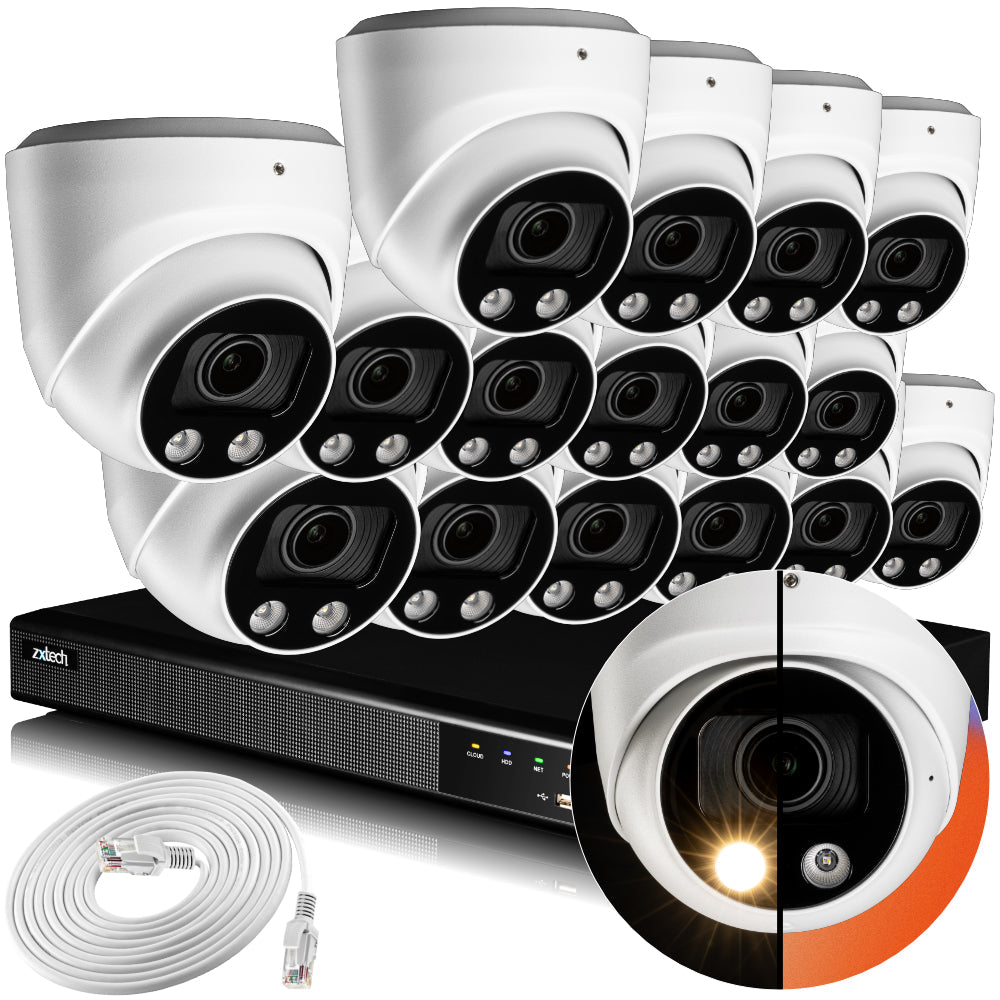

• 【30M Night Vision】Choose the night vision mode that suits your property best. Infrared delivers discreet, no-glow black-and-white footage for stealth monitoring. The built-in white LEDs provide bright full-colour viewing after dark. Fusion Light combines both, keeping the camera in stealth IR by default, then automatically switching to vivid colour when motion is detected. Set it to Infrared only, LED only, or Fusion Light for the perfect balance of discretion and clear colour evidence.
• 【Face, Body & Vehicle Detection】Advanced AI detection helps reduce false alerts and focus on what matters most. The system can intelligently detect faces, human bodies, and vehicles, while also supporting smart events such as intrusion detection, line crossing, loitering, and people gathering detection for more accurate and proactive security.
• 【PoE】With the included PoE cables for every camera, each 4K CCTV camera, with optional 5MP versions available, connects to the 4K NVR using just one single cable. This provides both power and video through the same connection, making installation quicker, neater, and more reliable.
• 【Built-in Microphone】Fusion Light camera options come with a built-in microphone as standard, allowing them to capture clear audio alongside video for more complete evidence and added peace of mind. Other variants are also available with an audio input port for adding an external microphone later.
• 【Dual or Quad HDD Bay Storage】Built for more demanding and commercial-grade installations, the 16-channel PoE NVR is available with 2 HDD bays, each supporting up to 10TB, for a total storage capacity of up to 20TB. For even greater flexibility and longer recording retention, you can choose the 24-channel PoE NVR with 4 HDD bays supporting up to 40TB in total, making it ideal for larger, more demanding, and high-security CCTV installations.

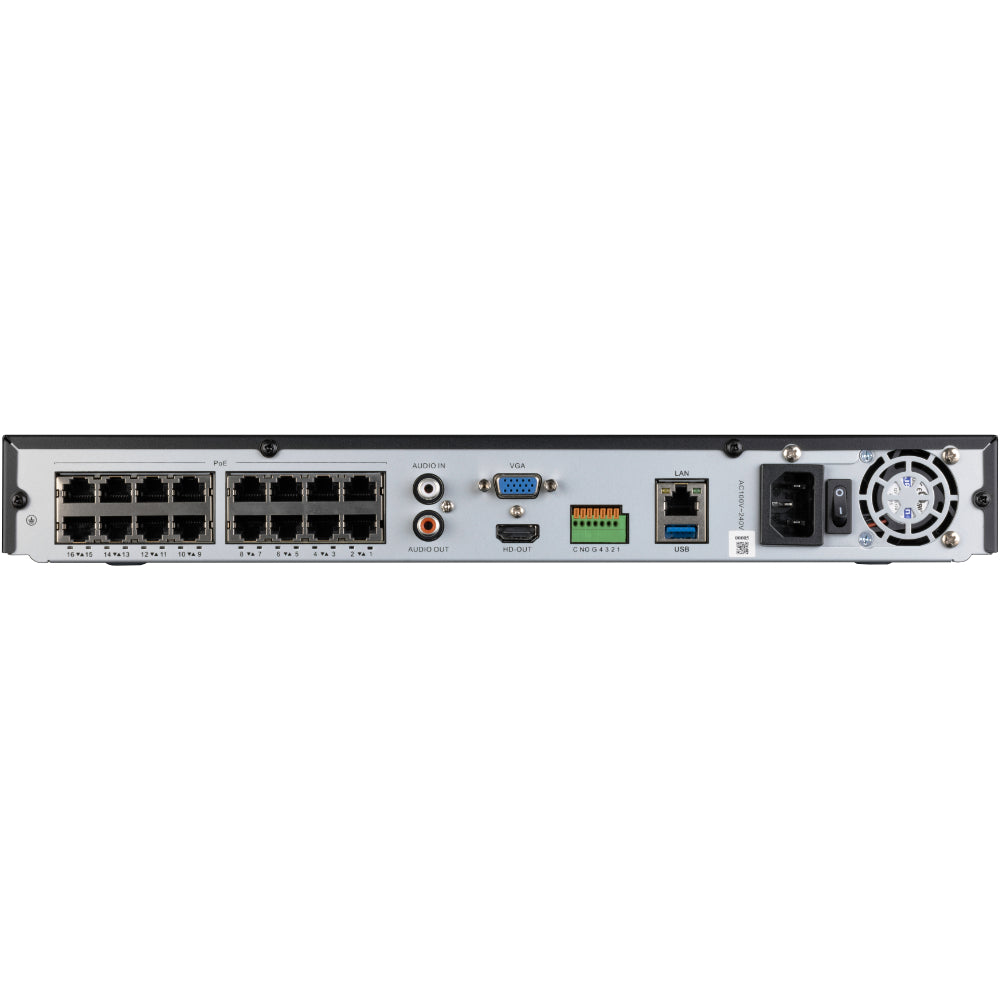

• 【Built-in 16CH or 24CH PoE Switch】The CCTV NVR comes with a built-in 16-channel PoE switch, allowing you to connect and power up to 16 cameras directly from the recorder for a cleaner and more convenient setup. For larger installations, you can also choose the 24-channel PoE NVR, offering support for up to 24 camera connections.
• 【Built-in Memory】The included cameras come with 4GB of built-in DDR3 memory and a microSD card slot supporting up to 512GB of expandable storage, giving you added flexibility for onboard recording and backup.
• 【2.7–13.5mm Auto Zoom & Focus】With a 2.7–13.5mm motorised lens, you can adjust the zoom remotely from the app or PC for the perfect view. The camera then refocuses automatically, so there is no need to climb a ladder to make manual adjustments.
• 【H.265+ Compression】The system supports advanced H.265+ video compression, helping you save up to 50% more storage space on your hard drive while maintaining high-quality video footage.
• 【Smartphone Remote Access】With the free mobile app and desktop client, you can view your cameras remotely and monitor your property anytime, anywhere.

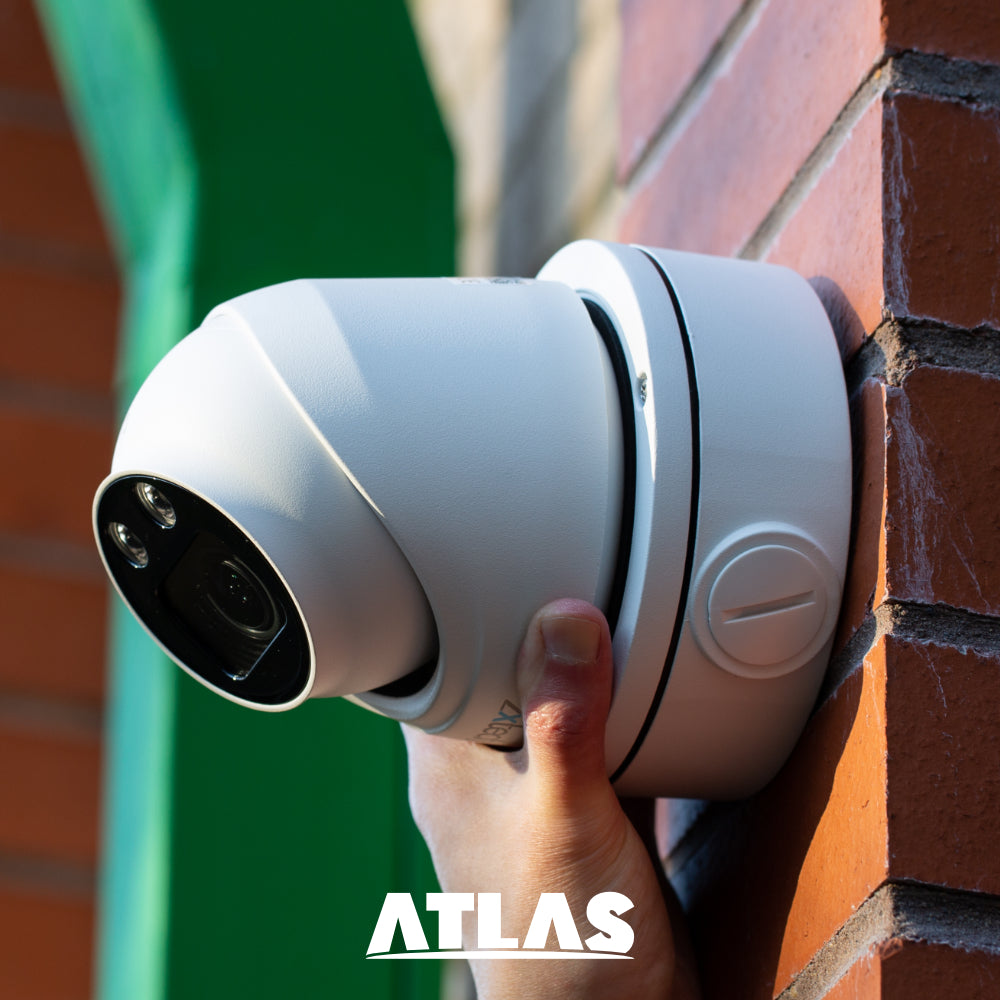

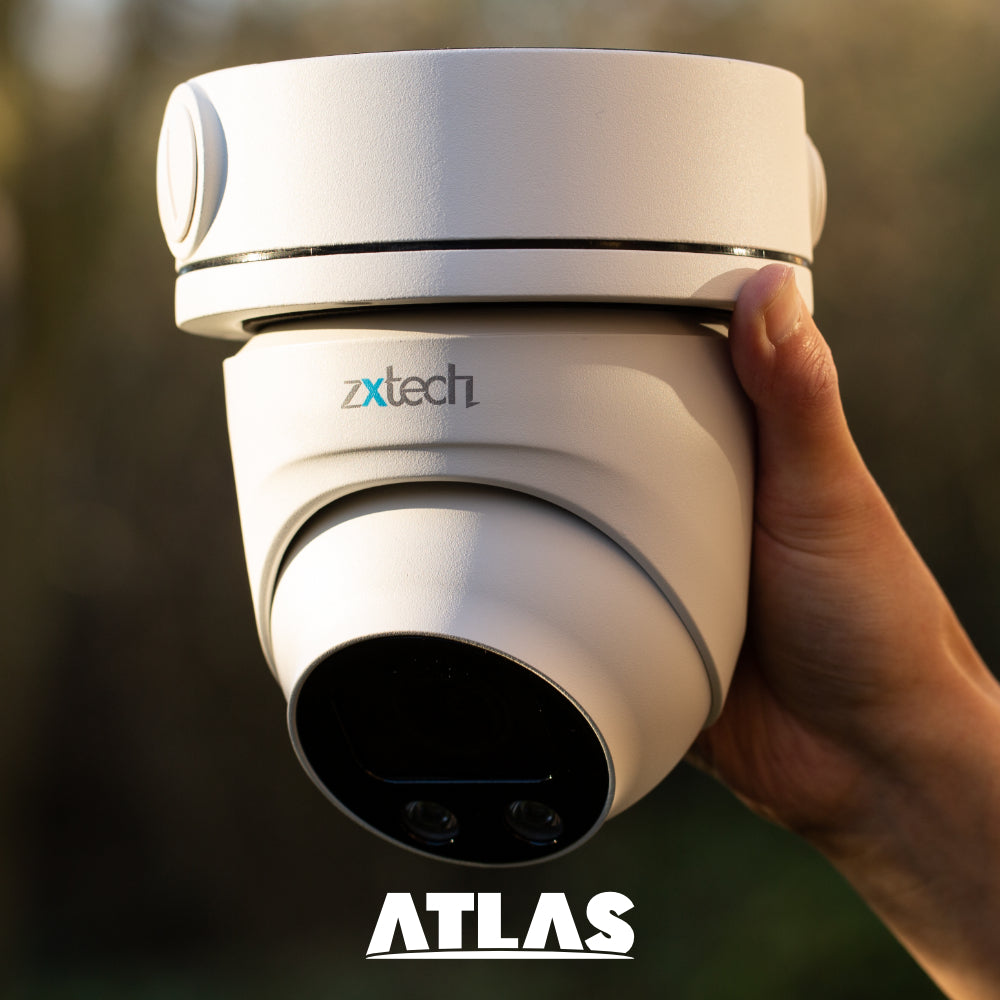

• 【Weatherproof & Vandal Resistant】Built for reliable protection indoors and out, this Ultra HD surveillance system features a full-body heavy-duty metal housing with an IP67 weatherproof rating for dependable all-weather performance.
• 【HDR & Image Enhancement】Featuring advanced image enhancement technologies such as IR Cut, WDR, BLC, ROI, and Defog, this system is designed to deliver more accurate colours, improved clarity, and better visibility in challenging lighting conditions. The HDR sensor provides an impressive dynamic range of over 120dB, while Fusion Light options now deliver an even stronger 140dB for exceptional detail in both bright and dark areas of the scene.
• 【Smart Motion Alerts】The system supports motion detection and instant mobile notifications, sending activated push alerts with images as soon as motion is detected.
• 【Quick Mobile Setup】With simple P2P QR scanning, you can set up remote CCTV access in minutes and view your system anytime, anywhere.
